Quoi de neuf avec Traefik 2.0, le edge router à 1 milliard de téléchargements?

(🇫🇷) Quoi de neuf avec Traefik 2.0, le edge router à 1 milliard de téléchargements?

Toulouse Devops Meetup - 2019

Whoami

Jean-Baptiste Doumenjou

🇫🇷 Developer
Maintainer of Træfik
@jbdoumenjou
jbdoumenjou

Containous

https://containo.us

We Believe in Open Source
We Deliver Traefik and Traefik Enterprise Edition
Commercial Support
30 people distributed, 90% tech

Why Traefik?

Why, Mr Anderson?

The Premise of Microservices…

…and What Happens

Where’s My Service?

Tools of the Trade

Source: https://twitter.com/Caged/status/1039937162769096704

What If I Told You?

That You Don’t Have to Write This Configuration File…?

Here Comes Traefik!

Traefik Project

https://github.com/containous/traefik
MIT License
Written in Go
25,000+ ⭐ 1B+ ⬇️ 400+ 👷
Created in 2015, 4Y 🎂
Current stable branch: v2.0

Traefik (v2.0) Core Concepts

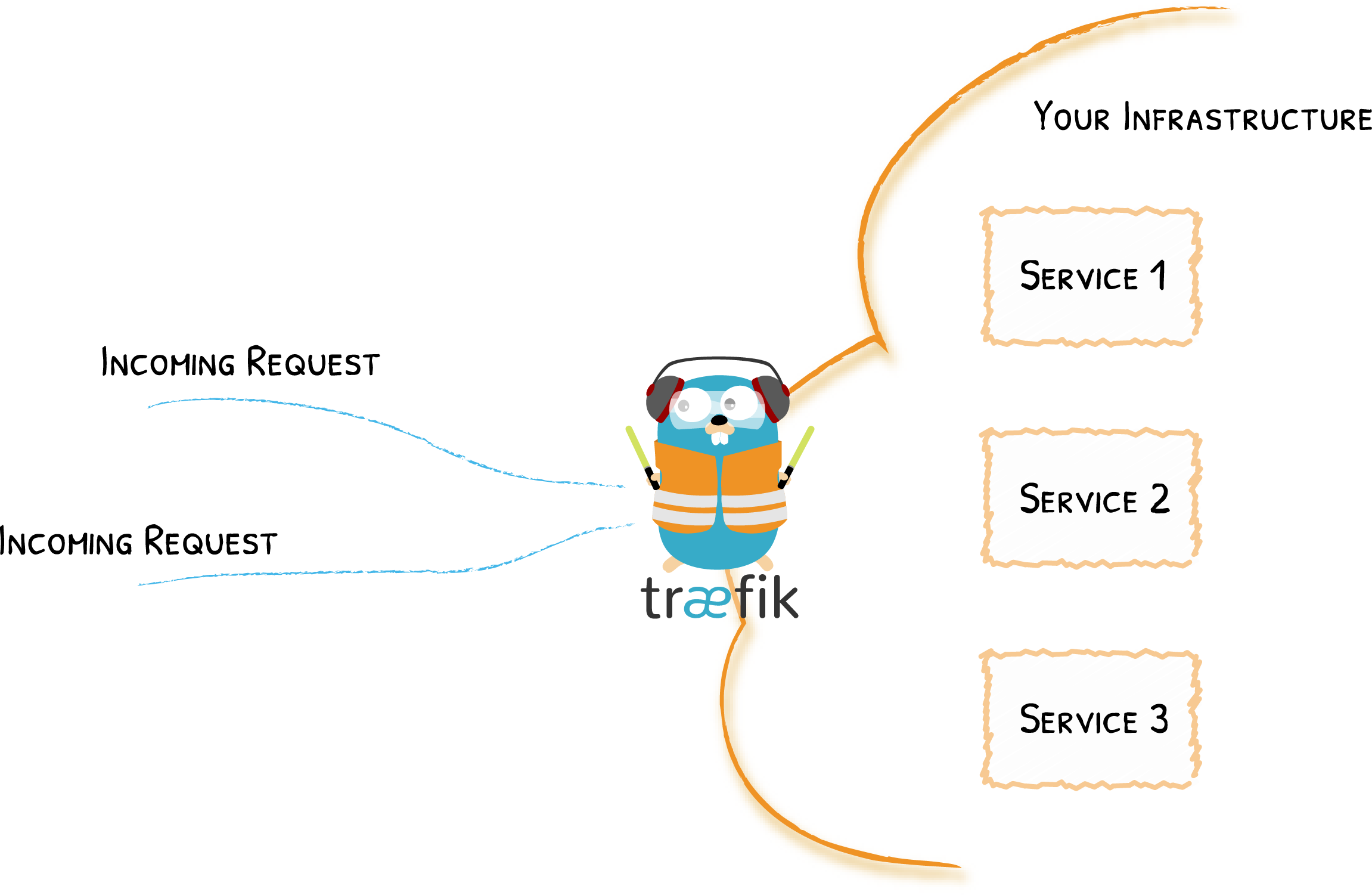

Traefik is an Edge Router

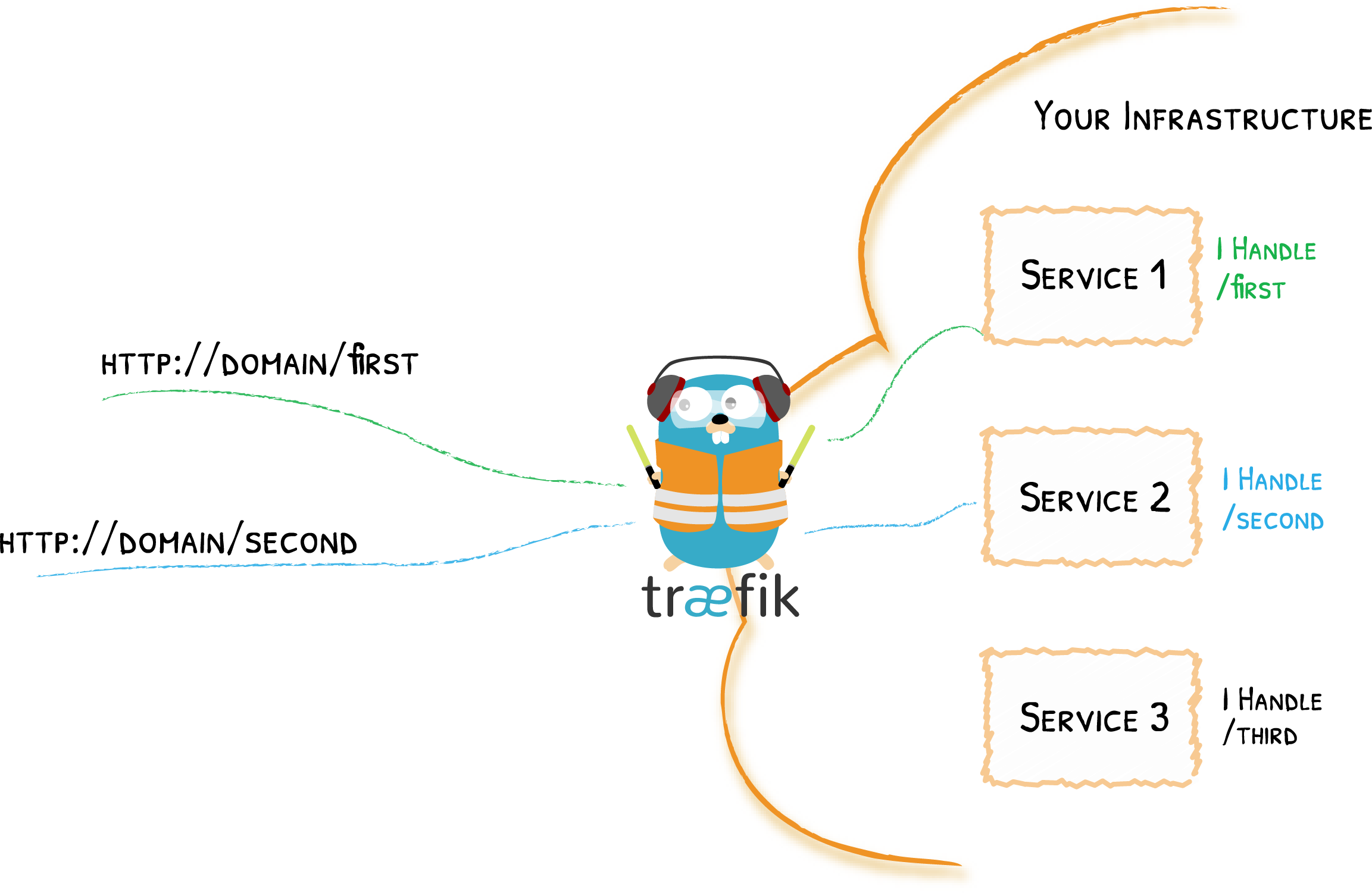

Dynamically Discovers Services

Architecture (v2.0) at a Glance

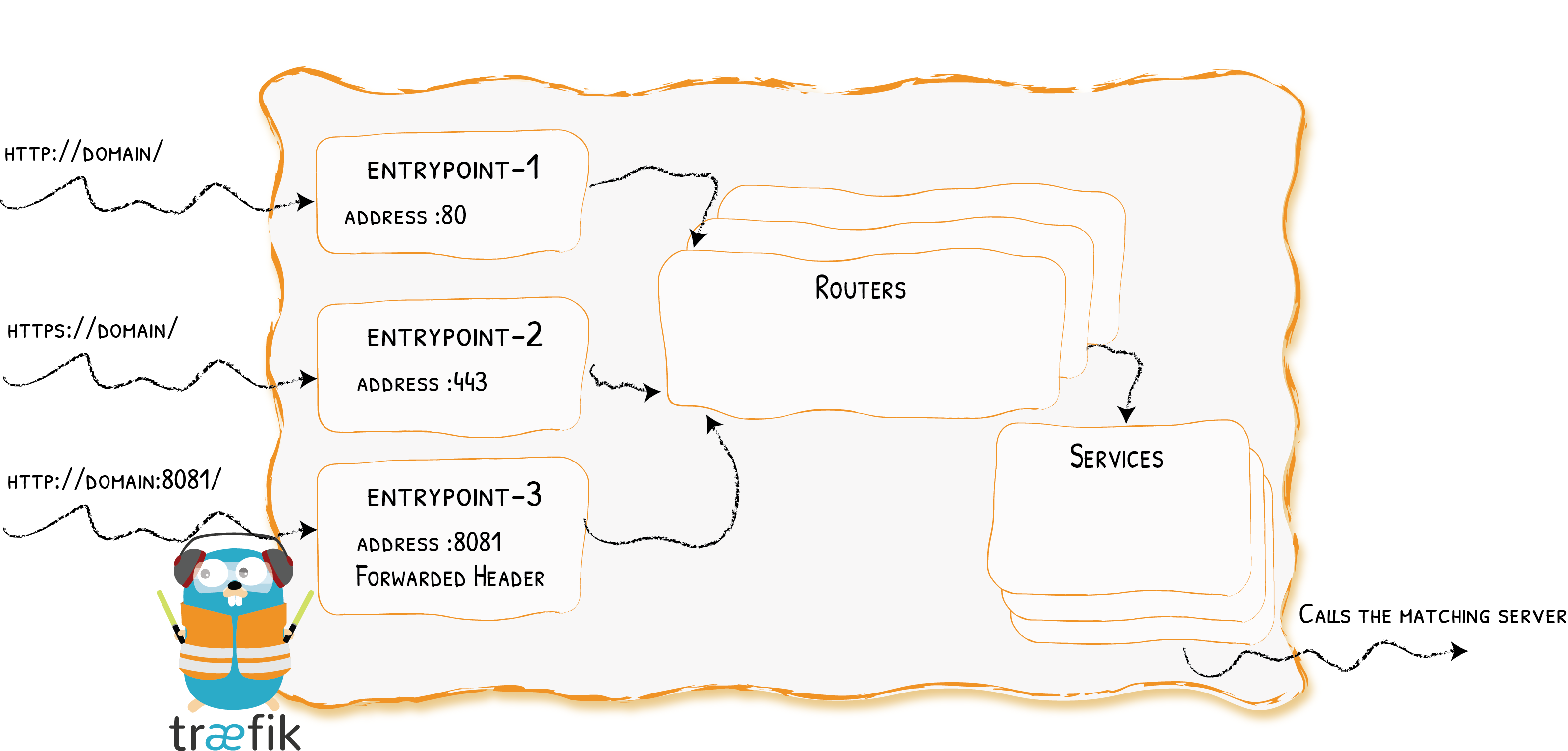

Entrypoints

Routers

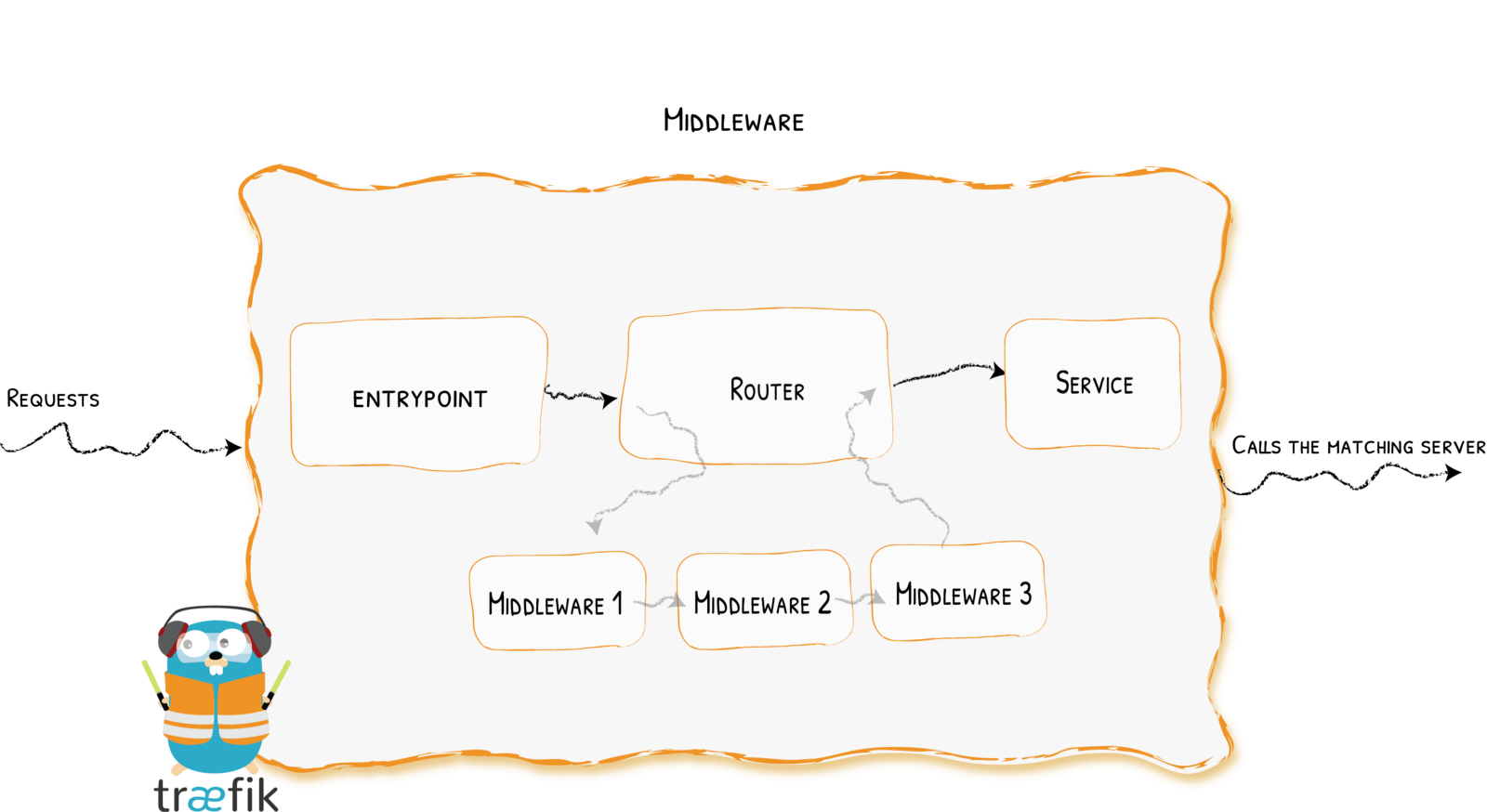

Middlewares

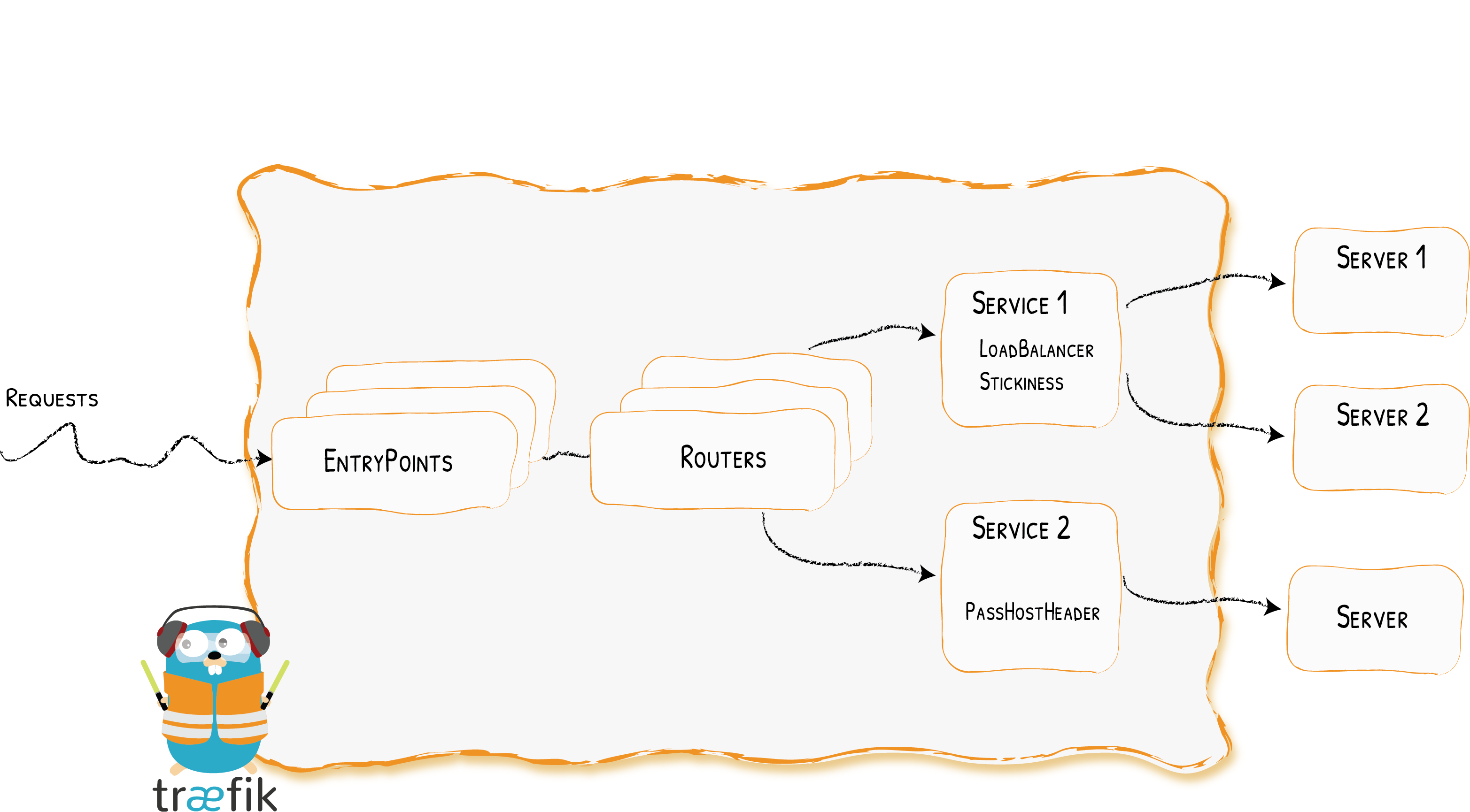

Services

Architecture (again) at a Glance

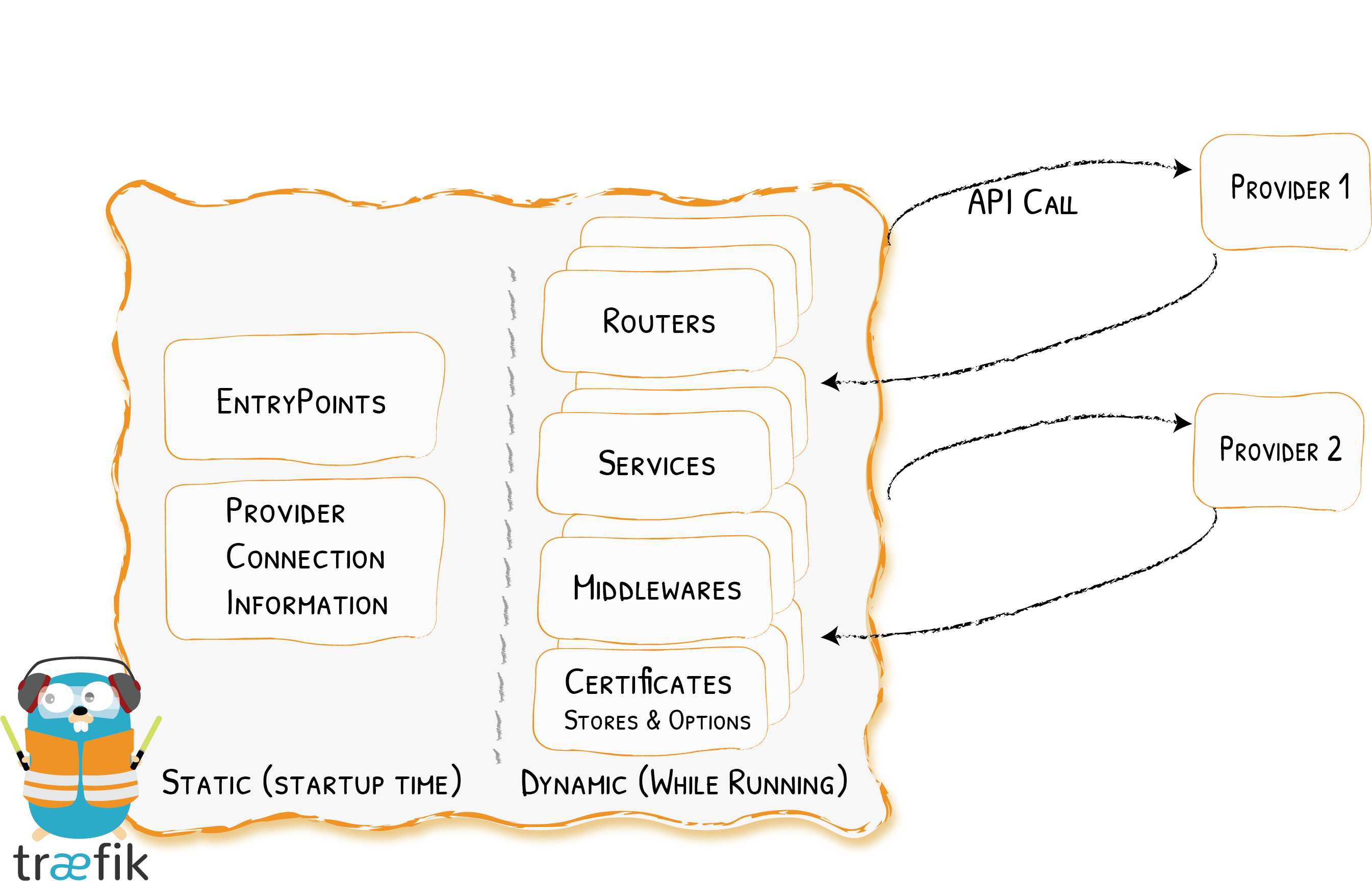

Static & Dynamic Configuration

Show Me the Configuration!

Simple Example with 🐳

With 🐳

With Docker Compose:

version: '3'

services:
  reverse-proxy:
    image: traefik:v2.0
    command: --providers.docker
    ports:
      - "80:80"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock

  webapp:
    image: containous/whoami
    labels:
      - "traefik.http.routers.webapp.rule=Host(`localhost`)"

With 🐳: Context

# http://mycompany.org/jenkins -> http://jenkins:8080/jenkins
jenkins:
    image: jenkins/jenkins:lts
    environment:
      - JENKINS_OPTS=--prefix=/jenkins
    labels:
      - "traefik.http.services.jenkins.loadBalancer.server.port=8080" # Because 50000 is also exposed
      - "traefik.http.routers.jenkins.rule=Host(`mycompany.org`) && PathPrefix(`/jenkins`)"
      - "traefik.http.routers.jenkins.service=jenkins"

With 🐳: Rewrites

# http://mycompany.org/gitserver -> http://[container IP]:3000
gitserver:
    image: gitea/gitea
    labels:
      - "traefik.http.routers.gitserver.rule=Host(`mycompany.org`) && PathPrefix(`/gitserver`)"
      - "traefik.http.middlewares.gitserver-stripprefix.stripprefix.prefixes=/gitserver"
      - "traefik.http.routers.gitserver.middlewares=gitserver-stripprefix"

With File Configuration

Canary releases

http:
  services:
    canary:
      weighted:
        services:
        - name: appv1
          weight: 3 # 75%
        - name: appv2
          weight: 1 # 25%
    appv1:
      loadBalancer:
        servers:
        - url: "http://private-ip-server-1/"
    appv2:
      loadBalancer:
        servers:
        - url: "http://private-ip-server-2/"

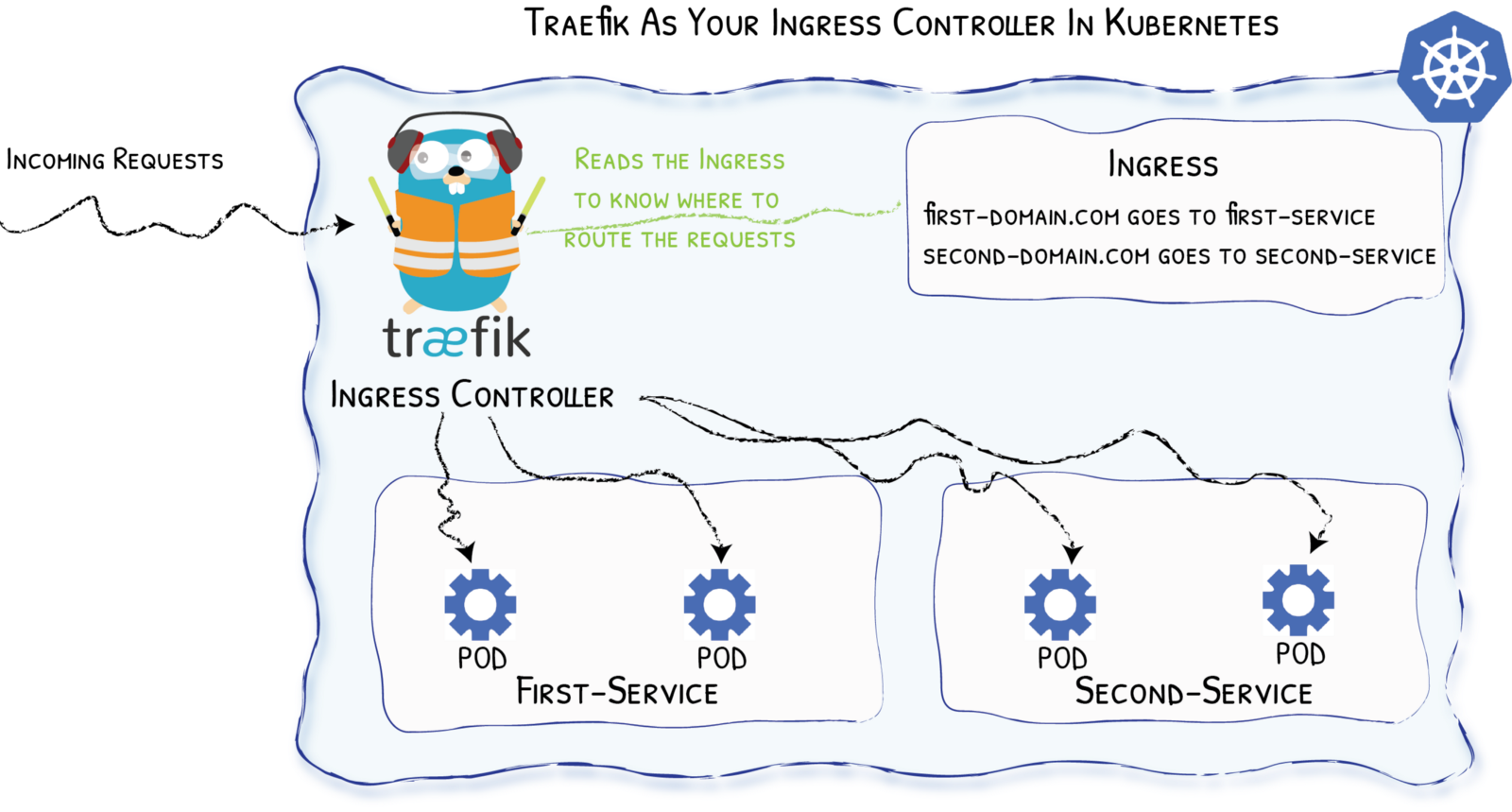

Traefik with ⎈

Diagram from https://medium.com/@geraldcroes

Example Code with ⎈

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: 'traefik'
spec:
  rules:
  - host: localhost
    http:
      paths:
      - path: "/whoami"
        backend:
          serviceName: webapp
          servicePort: 80

⎈ CRD - Custom Resources Definition

# File "webapp.yaml"
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: simpleingressroute
spec:
  entryPoints:
    - web
  routes:
  - match: Host(`localhost`) && PathPrefix(`/whoami`)
    kind: Rule
    services:
    - name: webapp
      port: 80

$ kubectl apply -f webapp.yaml
$ kubectl get ingressroute

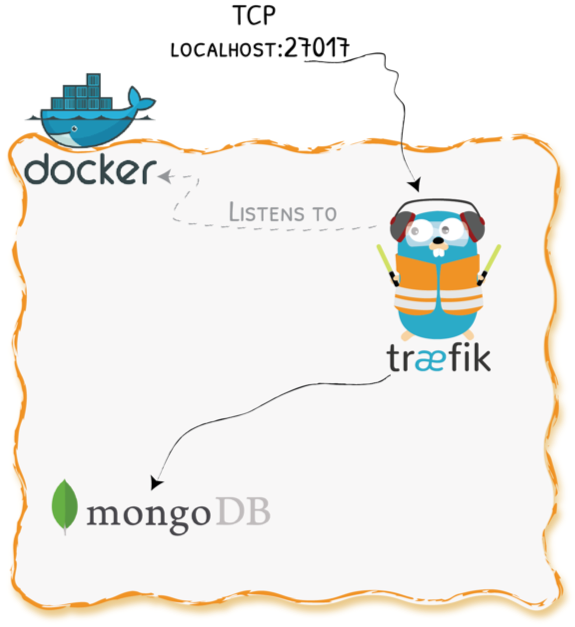

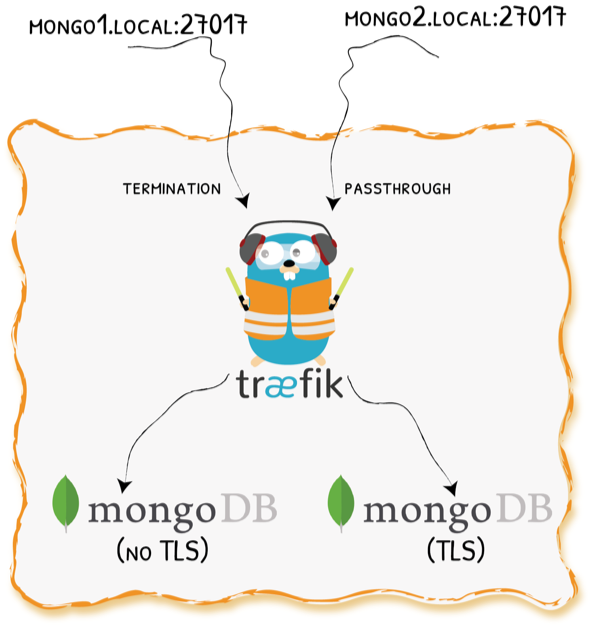

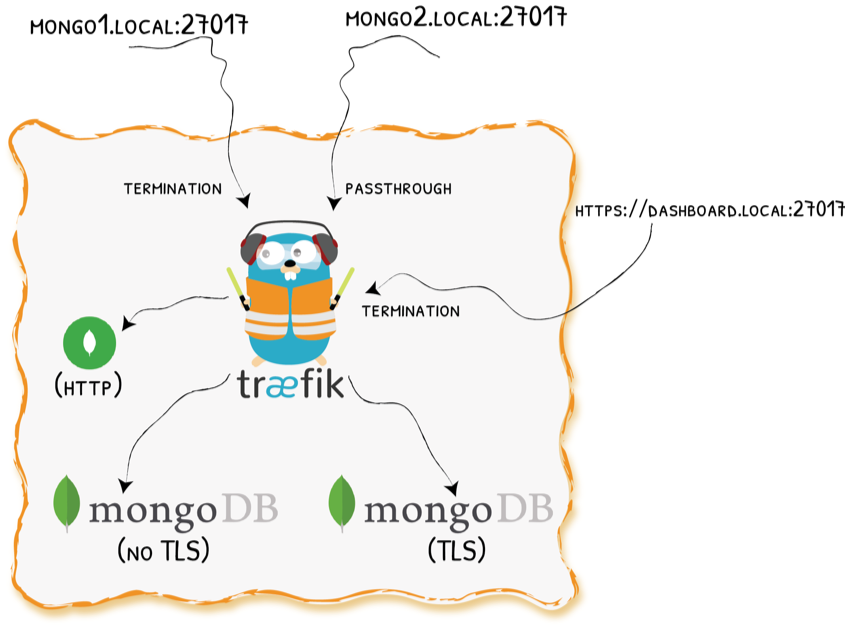

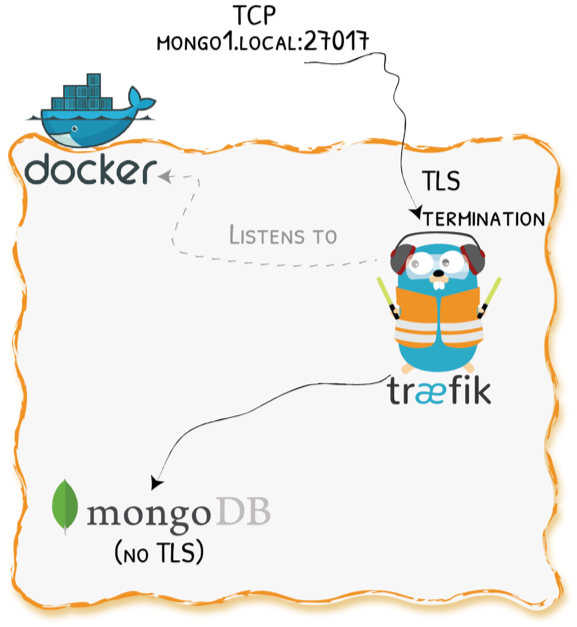

⎈ & TCP (with CRD)

apiVersion: traefik.containo.us/v1alpha1
kind: IngressRouteTCP
metadata:
  name: ingressroutetcpmongo.crd
spec:
  entryPoints:
    - mongotcp
  routes:
  - match: HostSNI(`mongo-prod`)
    services:
    - name: mongo-prod
      port: 27017
