Why Traefik?

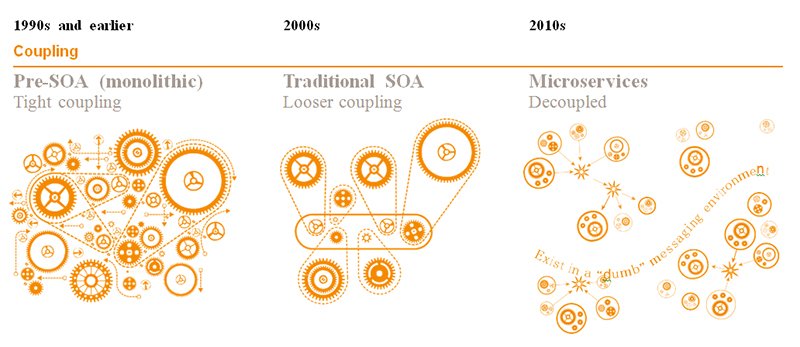

Evolution of Software Design

The Premise of Microservices…​

…​and What Happens

Where’s My Service?

Tools of the Trade

What If I Told You?

Here Comes Traefik!

Traefik Project

Traefik 2.0 Quick Overview

Traefik (v2.0) Core Concepts

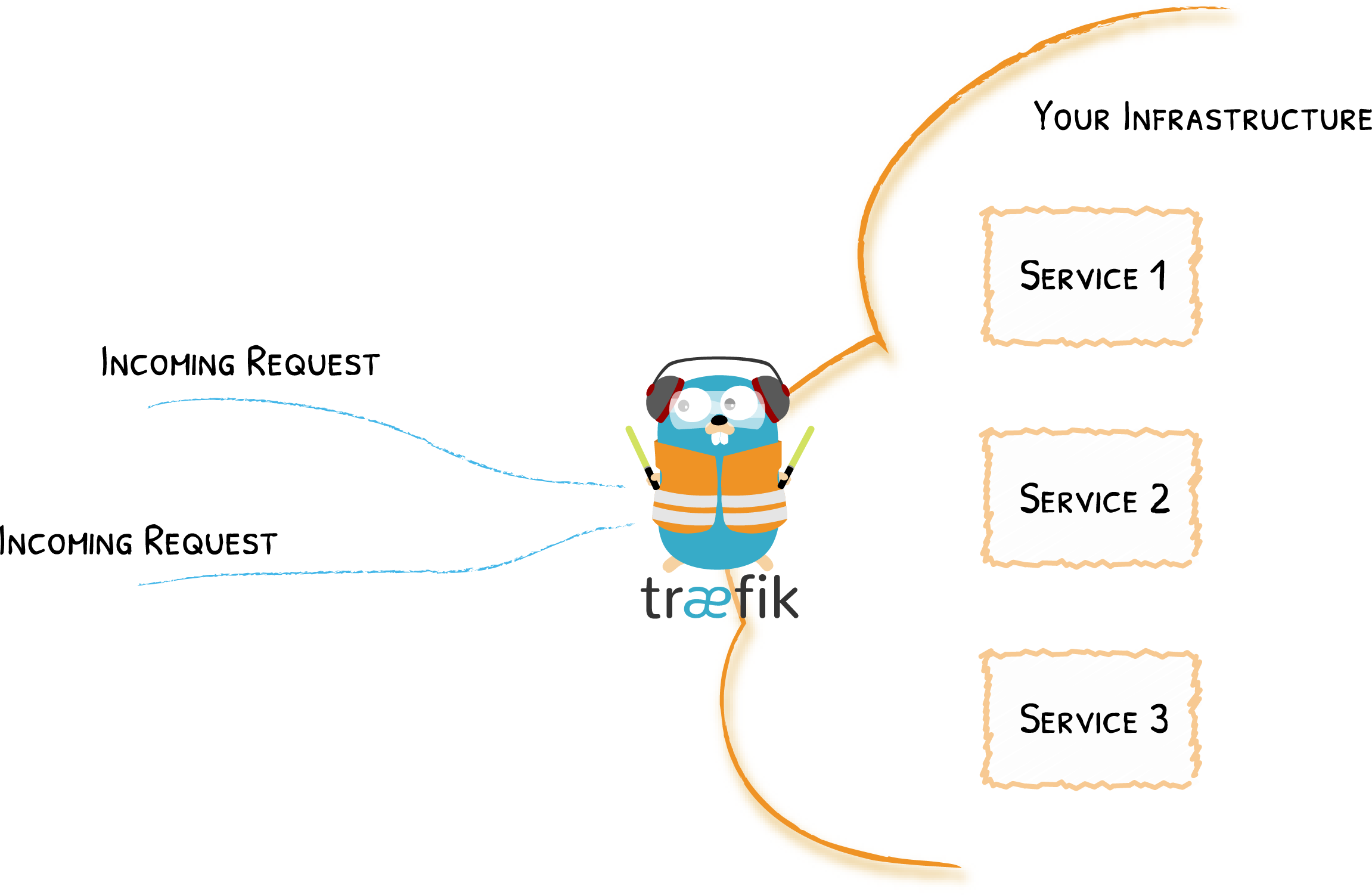

Traefik is an Edge Router

Traefik Dynamically Discovers Services

Architecture (v2.0) at a Glance

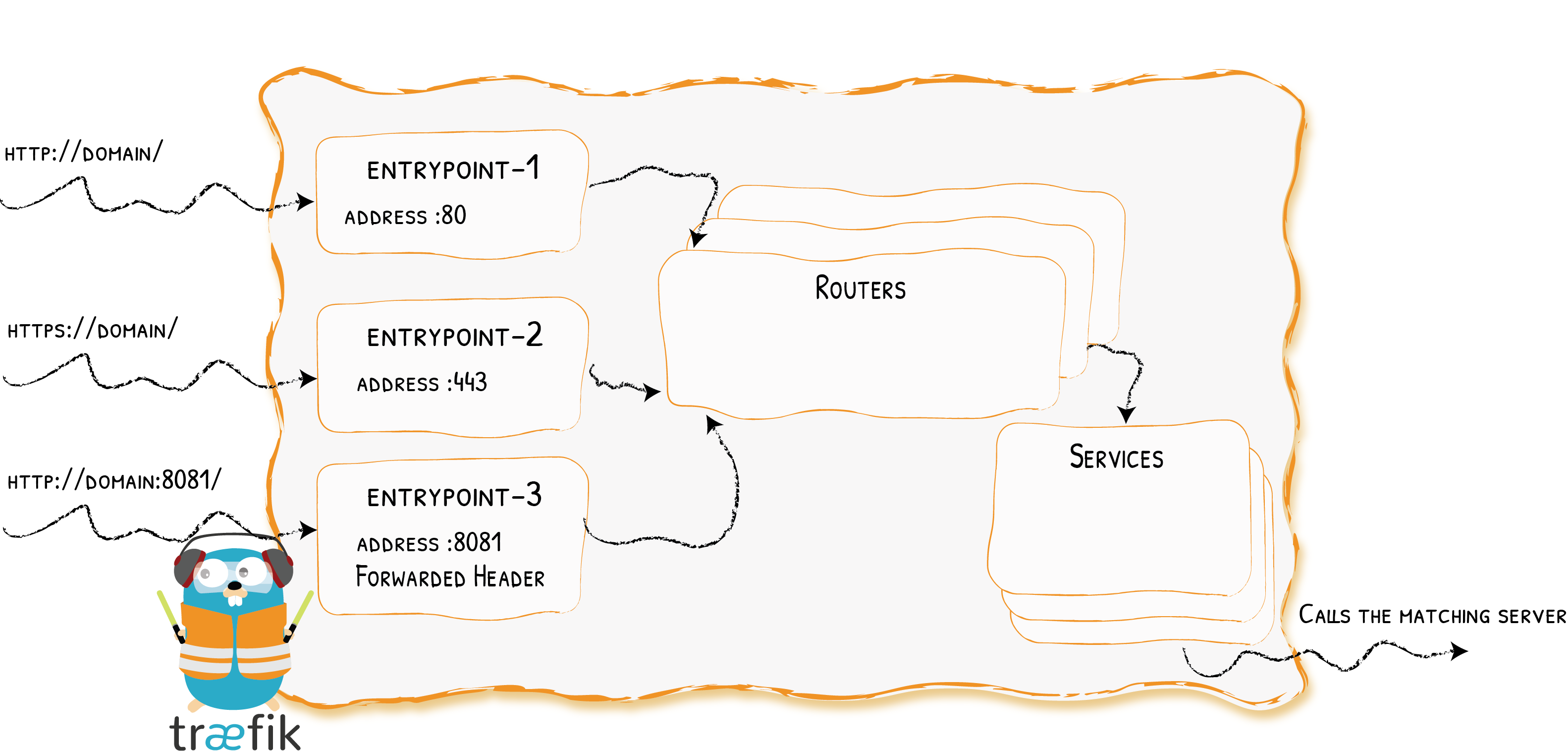

Entrypoints

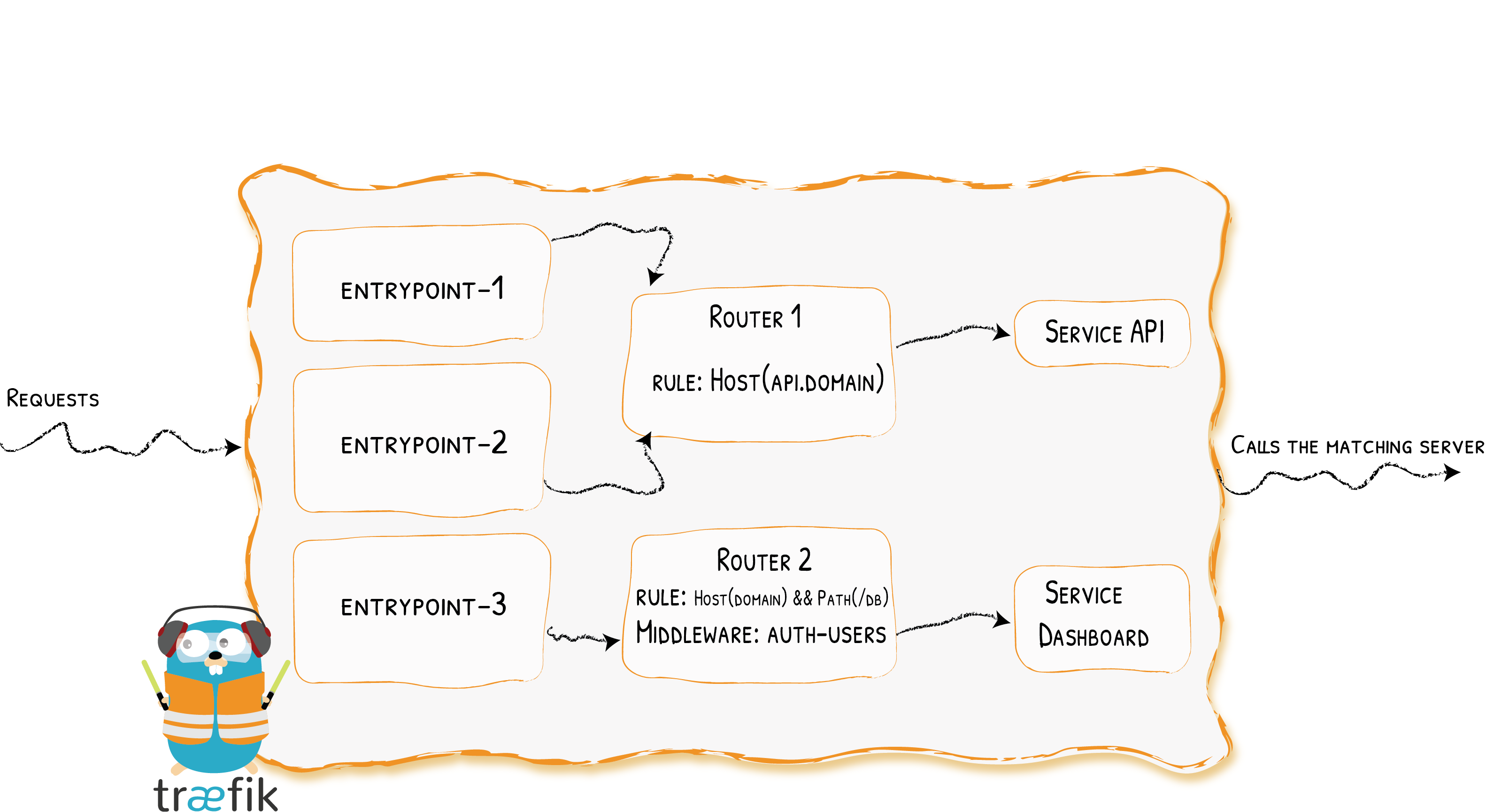

Routers

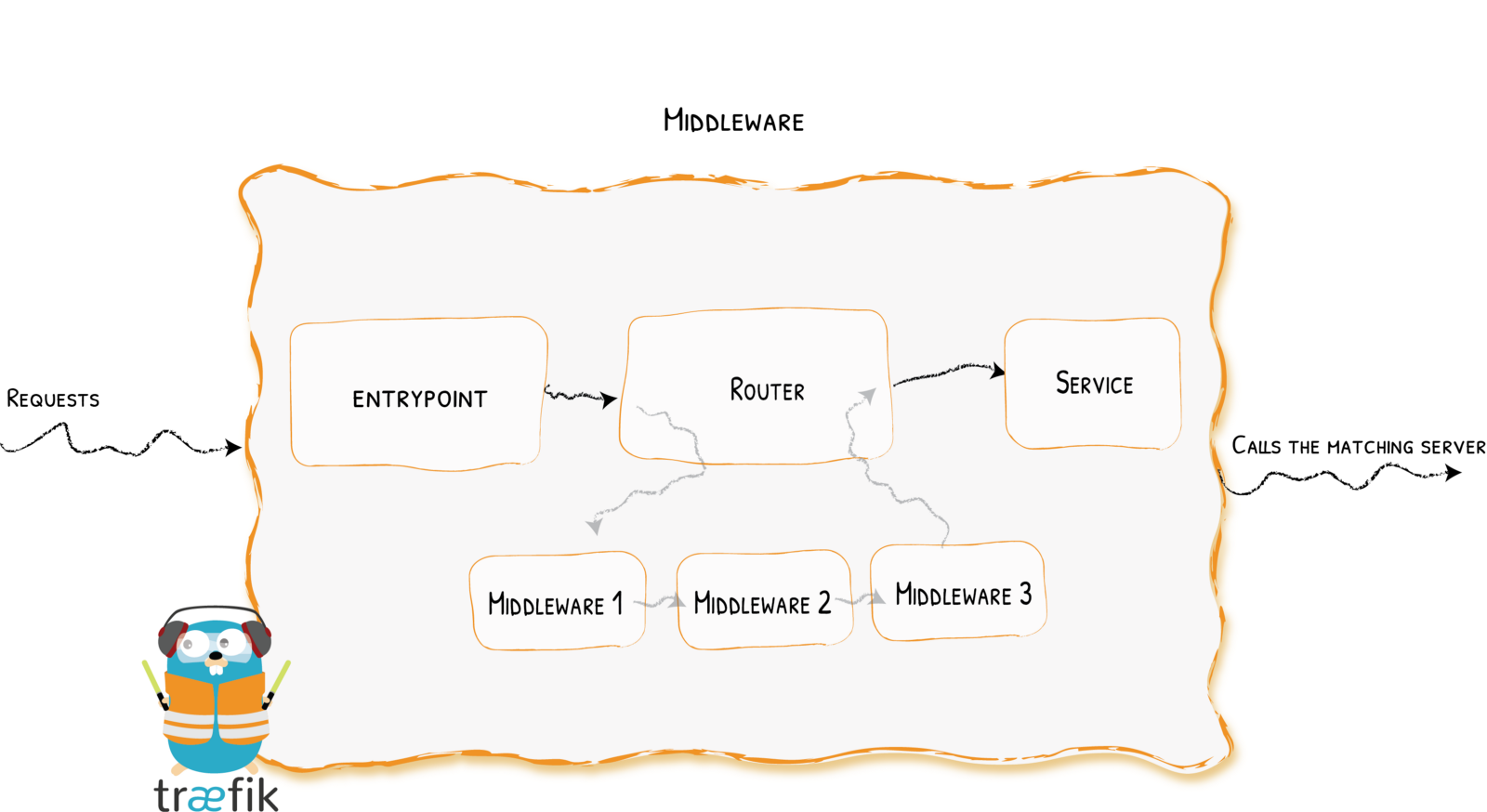

Middlewares

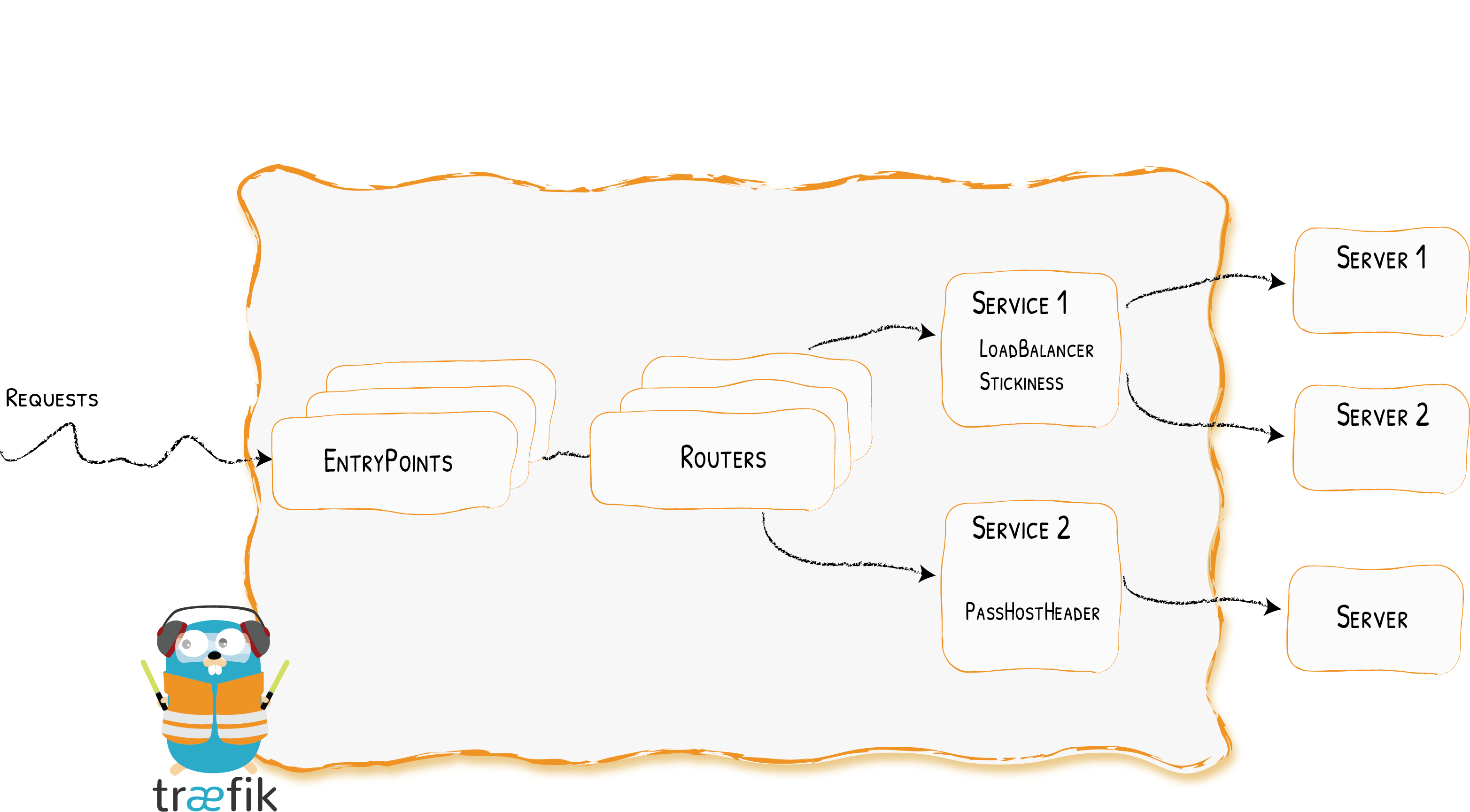

Services

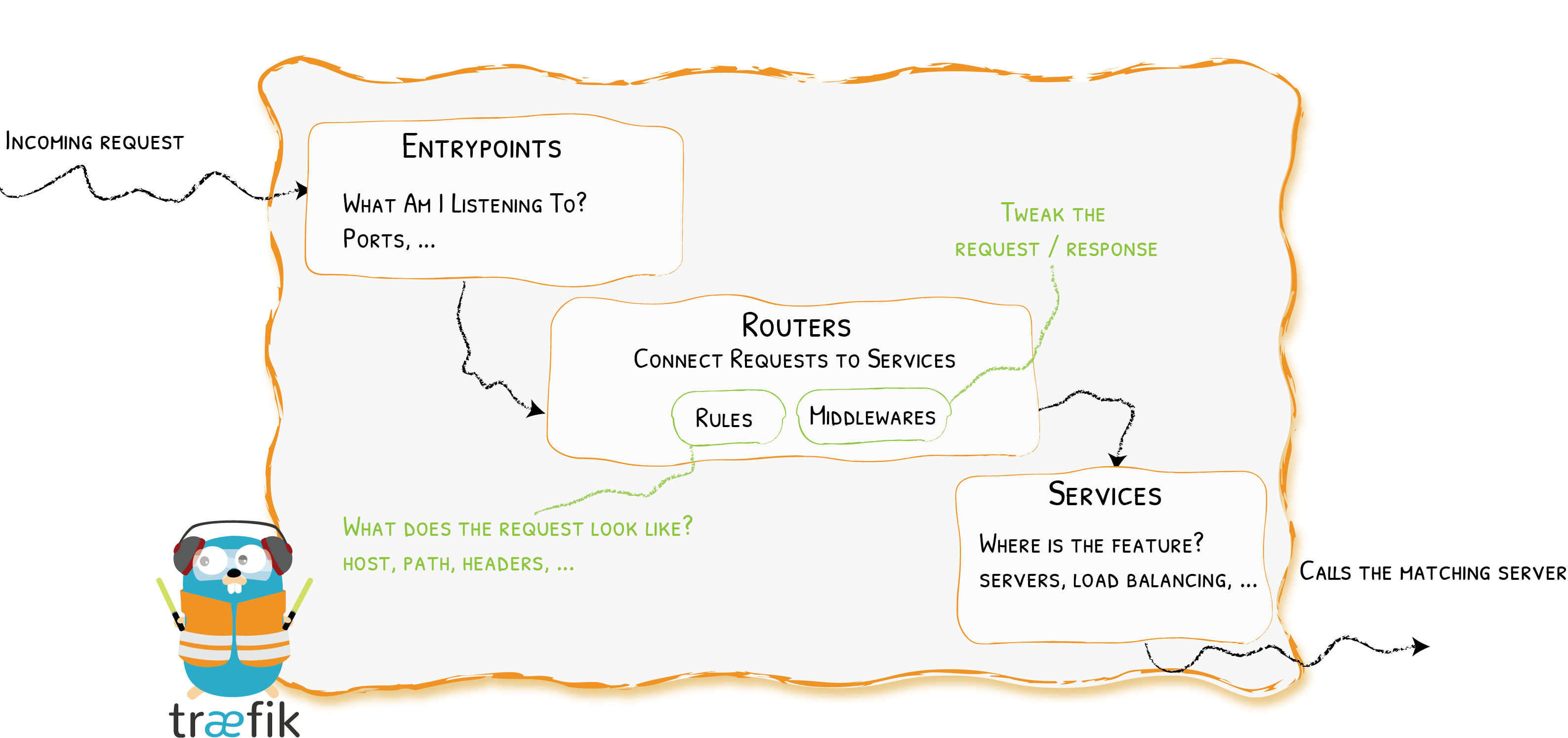

Architecture (again) at a Glance

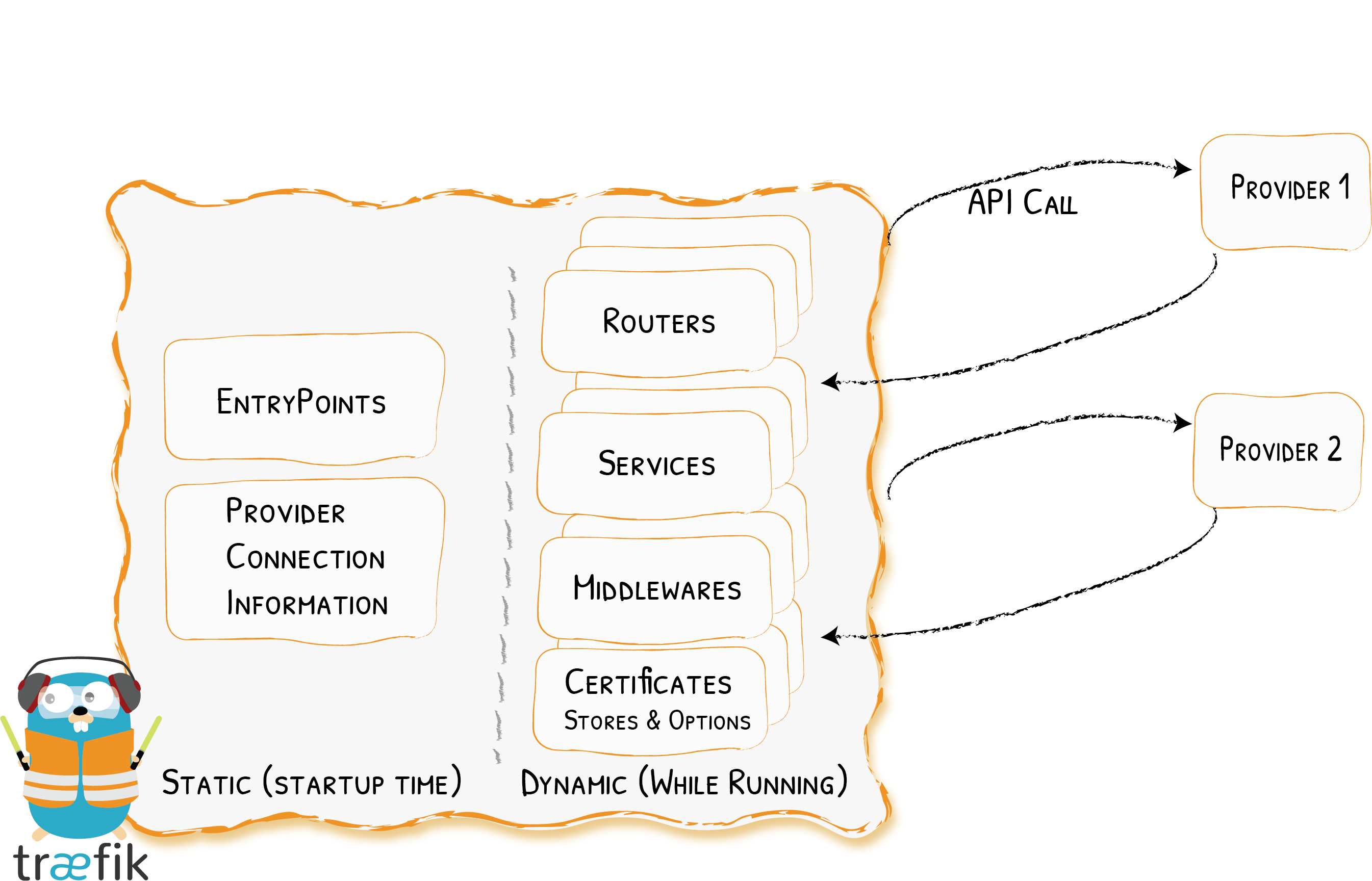

Static & Dynamic Configuration

Show Me the Configuration!

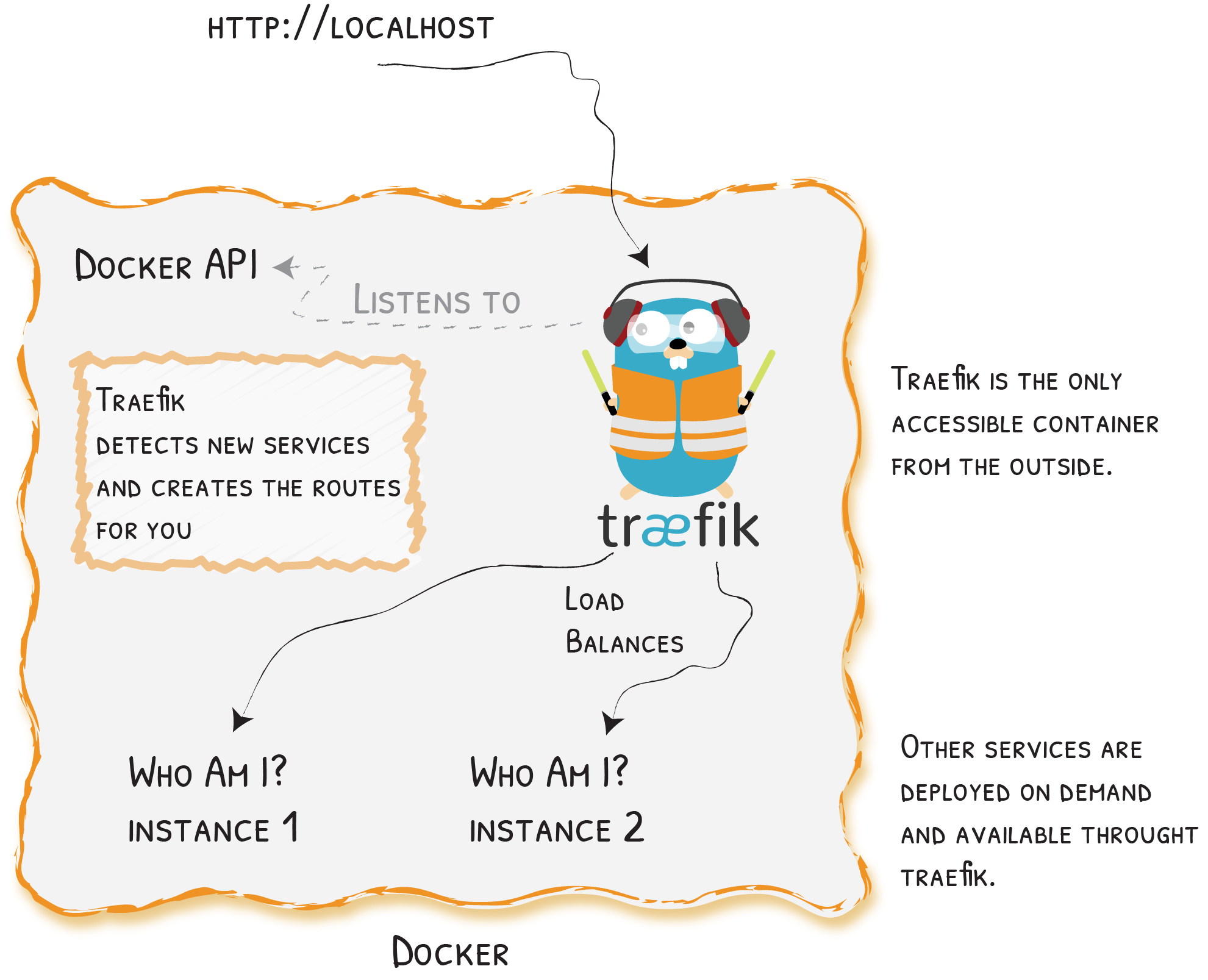

Simple Example with 🐳

With 🐳

version: '3'

services:
  reverse-proxy:
    image: traefik:v2.0
    command: --providers.docker
    ports:
      - "80:80"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock

  webapp:
    image: containous/whoami
    labels:
      - "traefik.http.routers.webapp.rule=Host(`localhost`)"

With 🐳: Context

# https://mycompany.org/jenkins -> http://jenkins:8080/jenkins
jenkins:
    image: jenkins/jenkins:lts
    environment:
      - JENKINS_OPTS=--prefix=/jenkins
    labels:
      - "traefik.http.services.jenkins.LoadBalancer.server.Port=8080" # Because 50000 is also exposed
      - "traefik.http.routers.jenkins.rule=Host(`mycompany.org`) && PathPrefix(`/jenkins`)"
      - "traefik.http.routers.jenkins.service=jenkins"

With 🐳: Rewrites

# https://mycompany.org/gitserver -> http://gitserver:3000/
gitserver:
    image: gitea/gitea
    labels:
      - "traefik.http.routers.gitserver.rule=Host(`mycompany.org`) && PathPrefix(`/gitserver`)"
      - "traefik.http.middlewares.gitserver-stripprefix.stripprefix.prefixes=/gitserver"
      - "traefik.http.routers.gitserver.middlewares=gitserver-stripprefix"

With 🐳: Websockets

# https://webterminal.mycompany.org -> http://webterminal/
webterminal:
    image: tsl0922/ttyd
    labels:
      - "traefik.http.routers.devbox.rule=Host(`webterminal.mycompany.org`)"

With File Configuration

Canaray releases

http:
  services:
    canary:
      weighted:
        services:
        - name: appv1
          weight: 3 # 75%
        - name: appv2
          weight: 1 #25%
    appv1:
      loadBalancer:
        servers:
        - url: "http://private-ip-server-1/"
    appv2:
      loadBalancer:
        servers:
        - url: "http://private-ip-server-2/"

Demo

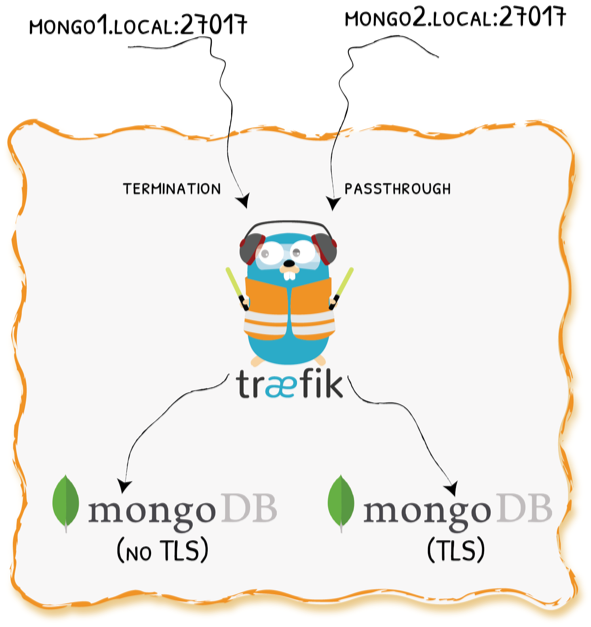

Demo 1 - SNI Routing + TLS Passthrough for TCP

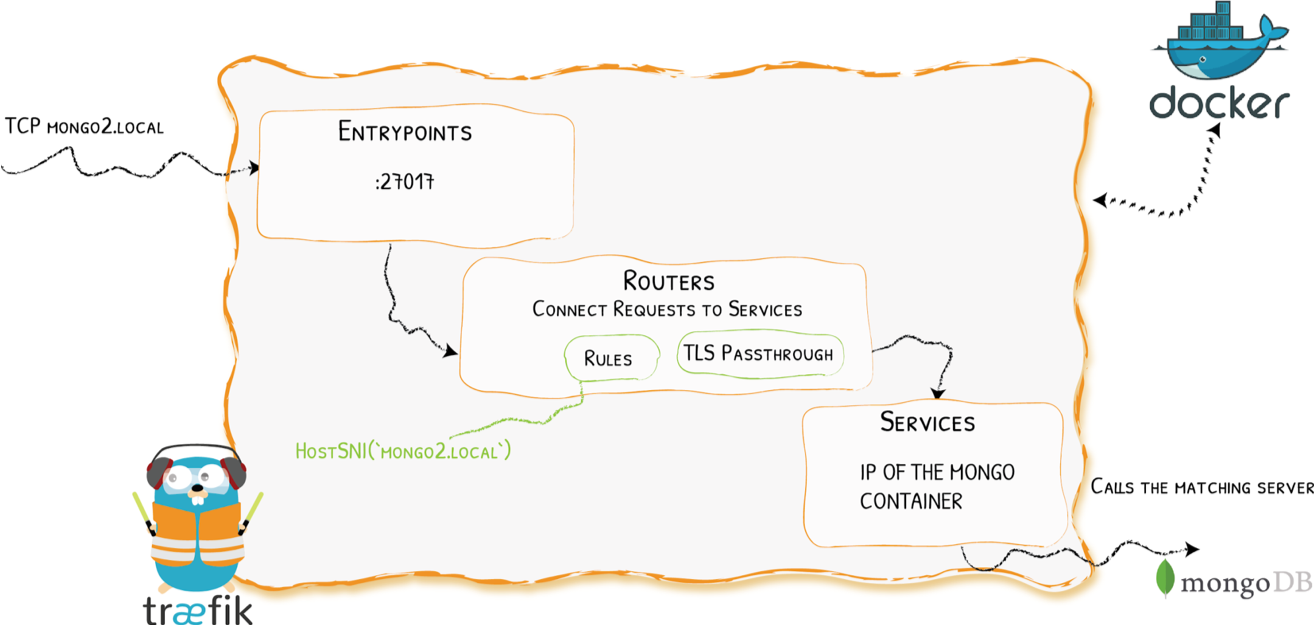

Demo 1 - Configuration

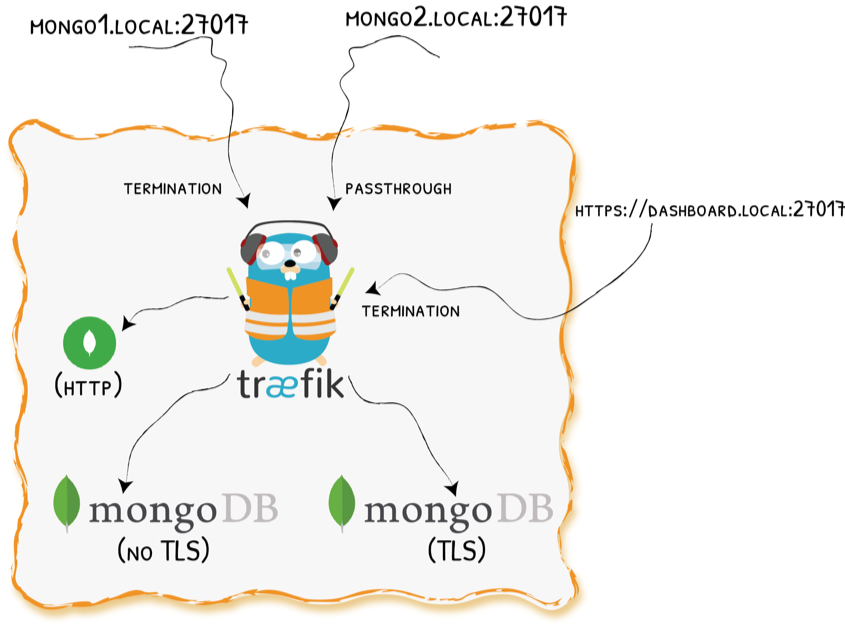

Demo 2 - Muxing HTTPS and TCP on the Same Port

Demo 3 - Canaray Release of a WebApp

The Herd

Traefik comes in Herd

As Simple As Traefik

# Cluster Installation
traefikeectl install \
    --licensekey="SuperSecretLicence" \
    --dashboard \
    --kubernetes # Or --swarm

# Routing Configuration, same as Traefik's
traefikeectl deploy \
    --acme.email=ssl-admin@mycompany.org
    --acme.tlsChallenge
    ...

Free Trial

East / West Traefik

Say Hello to Maesh

What is Maesh?

Maesh Architecture

More on Maesh

That’s All Folks!

We have

We are hiring!

docker run -it containous/jobs
