Traefik Enterprise Edition & Maesh

Traefik's Logo

Paris Kubernetes Days - Wednesday 25th of September 2019

How to use these slides?

  • Browse the slides: Use the arrows

    • Change chapter: Left/Right arrows

    • Next or previous slide: Top and bottom arrows

  • Overview of the slides: keyboard’s shortcut "o"

  • Speaker mode (and notes): keyboard’s shortcut "s"

Whoami 1/2

Manuel Zapf

manuel

Whoami 2/2

Adrien Martinet

adrien

Containous

https://containo.us

  • We Believe in Open Source

  • We Deliver Traefik and Traefik Enterprise Edition

  • Commercial Support

  • 30 people distributed, 90% tech

Containous Logo

Why Traefik?

Why, Mr Anderson?

Why, Mr Anderson?

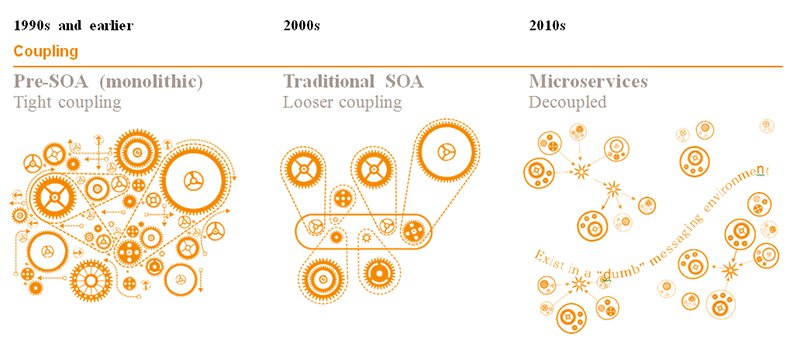

Evolution of Software Design

Evolution of Software Design

The Premise of Microservices…​

Asterix - Premise

…​and What Happens

Asterix - Fighting

Where’s My Service?

Where os Charlie?

Tools of the Trade

docker
rancher os
docker swarm
kubernetes
marathon
ec2
mesos
dynamodb
ecs
service fabric
consul
netflix oss
etcd
zookeeper
yaml
Source: https://twitter.com/Caged/status/1039937162769096704

What If I Told You?

What If I Told You

That You Don’t Have to Write This Configuration File…​?

Here Comes Traefik!

Traefik's Architecture

Traefik Project

The Herd

herd of goats
You came to the wrong neighbour

Traefik comes in Herd

cluster traefikee

Value Proposition

  • Community Driven Edge Router

  • Cloud Native & Agnostic

  • Configuration Auto-Discovery

  • Native Observability & Tracing

  • Deploy Easily and Operate at Scale

  • Security : Encryption & Separation of Concern

  • High Availability

High Availability
Security
Scalability

As Simple As Traefik

  • Install it:

# Cluster Installation
traefikeectl install \
    --licensekey="SuperSecretLicence" \
    --dashboard \
    --kubernetes # Or --swarm

  • Configure it:

# Routing Configuration, same as Traefik's
traefikeectl deploy \
    --acme.email=ssl-admin@mycompany.org
    --acme.tlsChallenge
    ...

Free Trial

https://containo.us/traefikee

Show Me the Configuration!

Keep it Simple

  • With 🐳:

entrypoint:
    image: traefik:v1.7
    command:
      - "--docker"
      - "--docker.domain=mycompany.org"
      - "--acme.email=ssl-admin@mycompany.org"
      - "--acme.httpChallenge.entryPoint=http"
      # Or you could use a TOML file with "--configFile=/etc/traefik/traefik.toml
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock

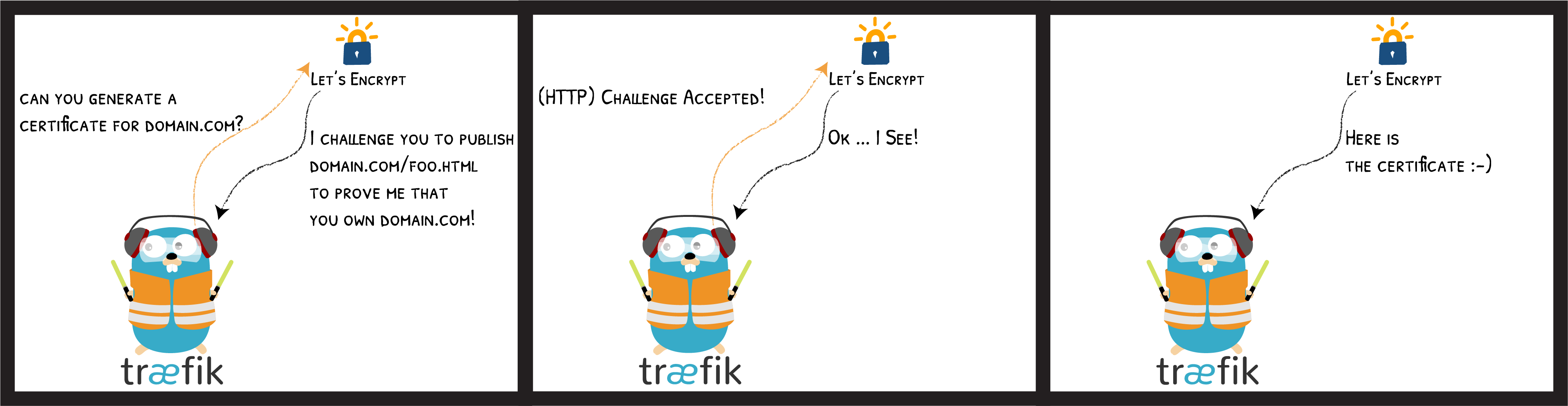

HTTPS for Everyone with Let’s Encrypt

Lets Encrypt HTTP Challenge

  • TLS, DNS and HTTP challenges supported

With 🐳: Simple backend

# https://www.mycompany.org -> http://webserver:80/
webserver:
    image: nginx:alpine
    labels:
      - "traefik.frontend.rule=Host:www.mycompany.org"

With 🐳: Context

# https://mycompany.org/jenkins -> http://jenkins:8080/jenkins
jenkins:
    image: jenkins/jenkins:lts
    labels:
      - "traefik.frontend.rule=PathPrefix:/jenkins"
      - "traefik.port=8080" # Because 50000 is also exposed
    environment:
      - JENKINS_OPTS=--prefix=/jenkins

With 🐳: Rewrites

# https://mycompany.org/gitserver -> http://gitserver:3000/
gitserver:
    image: gitea/gitea:1.5
    labels:
      - "traefik.frontend.rule=PathPrefixStrip:/gitserver"
      - "traefik.port=3000" # Because 22 is also exposed

With 🐳: Websockets

# https://mycompany.org/webterminal -> http://webterminal:7681/
webterminal:
    image: tsl0922/ttyd
    labels:
      - "traefik.frontend.rule=PathPrefixStrip:/webterminal"
    expose:
      - "7681"

Traefik with ⎈

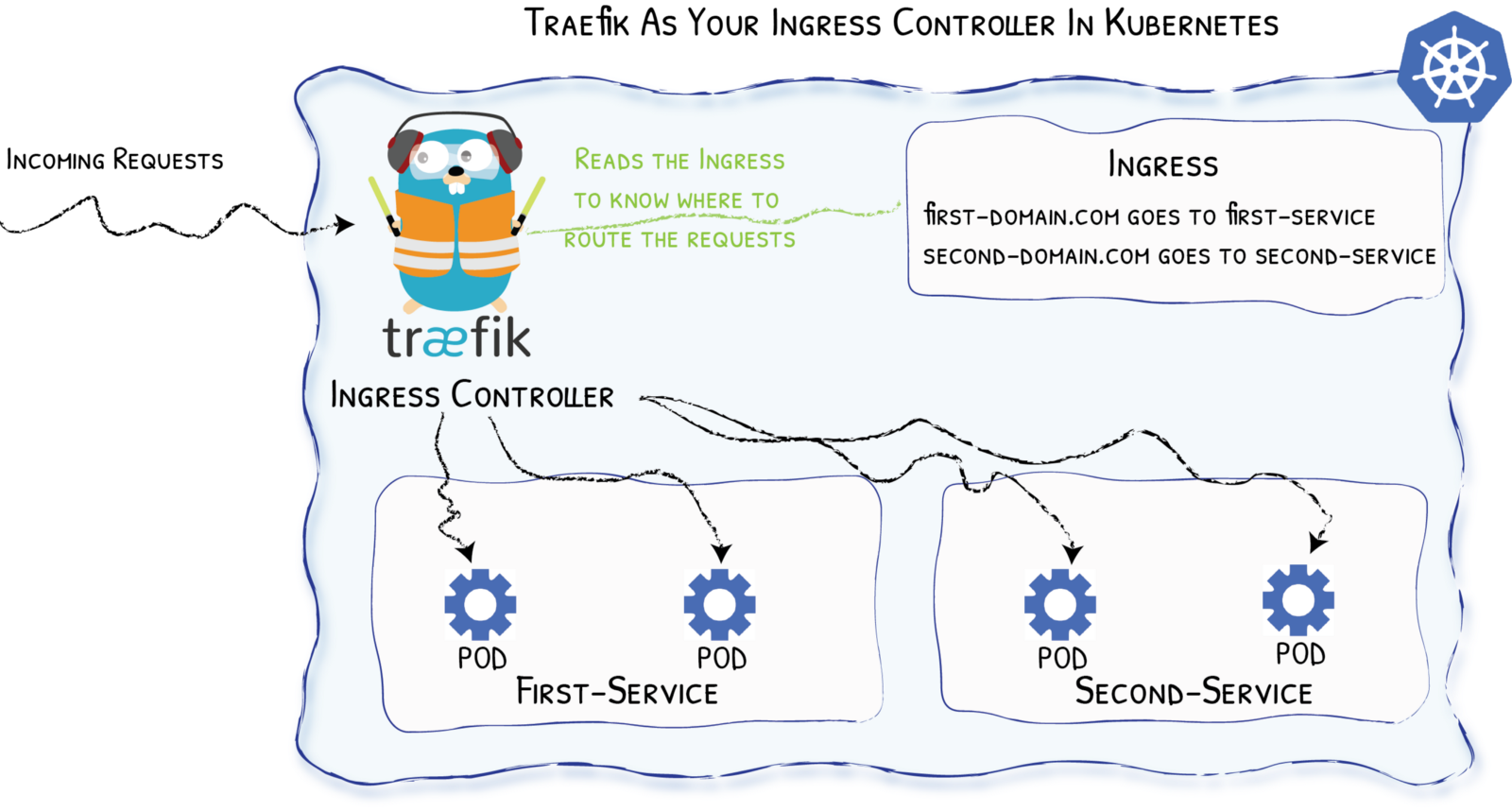

Traefik with Kubernetes Diagram
Diagram from https://medium.com/@geraldcroes

Did you say YAML?

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    # kubernetes.io/ingress.class: 'nginx'
    kubernetes.io/ingress.class: 'traefik'
spec:
  rules:
  - host: mycompany.org
    http:
      paths:
      - path: "/whoami"
        backend:
          serviceName: whoami
          servicePort: 80

We Missed Talking About …​

word cloud

East / West Traefik

compass

Say Hello to Maesh

maesh

What is Maesh?

Maesh is a lightweight, easy to configure, and non-invasive service mesh that allows visibility and management of the traffic flows inside any Kubernetes cluster.

Maesh Architecture

before maesh graphic
after maesh graphic

More on Maesh

  • Built on top of Traefik,

  • SMI (Service Mesh Interface specification) compliant,

  • Opt-in by default.

Maesh Website

Demo

demo

That’s All Folks!

We have

stickers!

We are hiring!

Containous
docker run -it containous/jobs

Thank you!

QRCode to this presentation
