Harness your routing super-hero power in Kubernetes with Traefik, Maesh and Konvoy

How to Access these Slides?

Whoami

Damien DUPORTAL:
- Træfik's Developer 🥑 Advocate @ Containous
@DamienDuportal
dduportal

https://containo.us

We Believe in Open Source
We Deliver Traefik, Traefik Enterprise Edition and Maesh
Commercial Support
30 people distributed, 90% tech
We are hiring!
```
docker run -it containous/jobs
```

Why Konvoy?

D2IQ

Formerly known as Mesosphere
"Day-Two-I-Q"
A smarter approach to "Day 2 Operations"

Day 2 Operations

"Day 2" refers to the phase of the development lifecycle that follows initial deployment where the real application demands exist.

KSphere

Embrace Kubernetes when:

Beginning your journey 🐣
Preparing for Day 2 🦅

KSphere Offer

Technical Solutions:
- Konvoy
- MKE (Mesosphere Kubernetes Engine)
Services:
- Professionnal Services
- Training
- Support

What is Konvoy?

A packaged 📦 Kubernetes ⎈ with integrated operational services 🛠.

Why using Konvoy?

Gain Flexibility Across Any Infrastructure
Manage Operations With Ease
Ensure Rapid Technology Adoption and Scale
Harness Premiere Domain Expertise

Konvoy

Konvoy Concepts

Standalone Native Distribution of Kubernetes
"One button push" User Experience
Packaged with a set of services for Operations

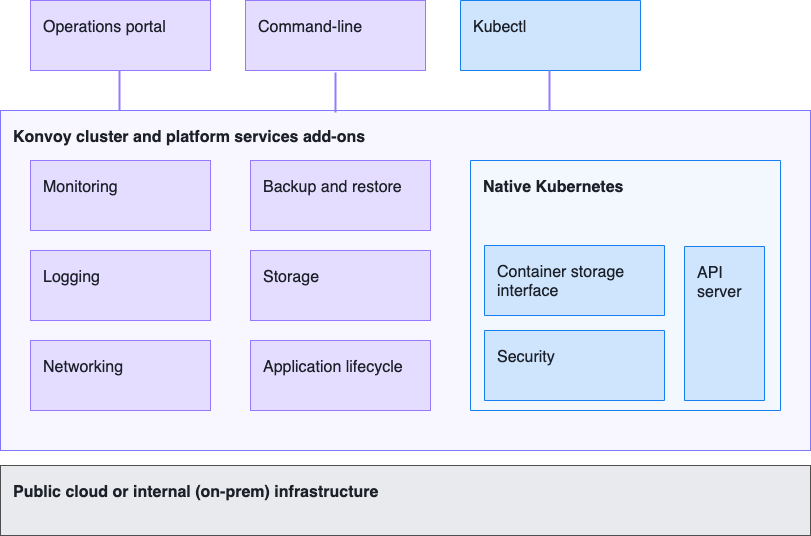

Konvoy Architecture

Diagram form Konvoy Documentation

Quick Start

Install a Konvoy Cluster in AWS EC2:

Prepare installation:
```
$ konvoy init --provisioner=aws
```
Run installation:
```
$ konvoy up
```

Use it:

$ konvoy apply kubeconfig && kubectl cluster-info

Kubernetes master is running at (...)
KubeDNS is running at (...)
kubernetes-dashboard is running at (...)

Konvoy Operations

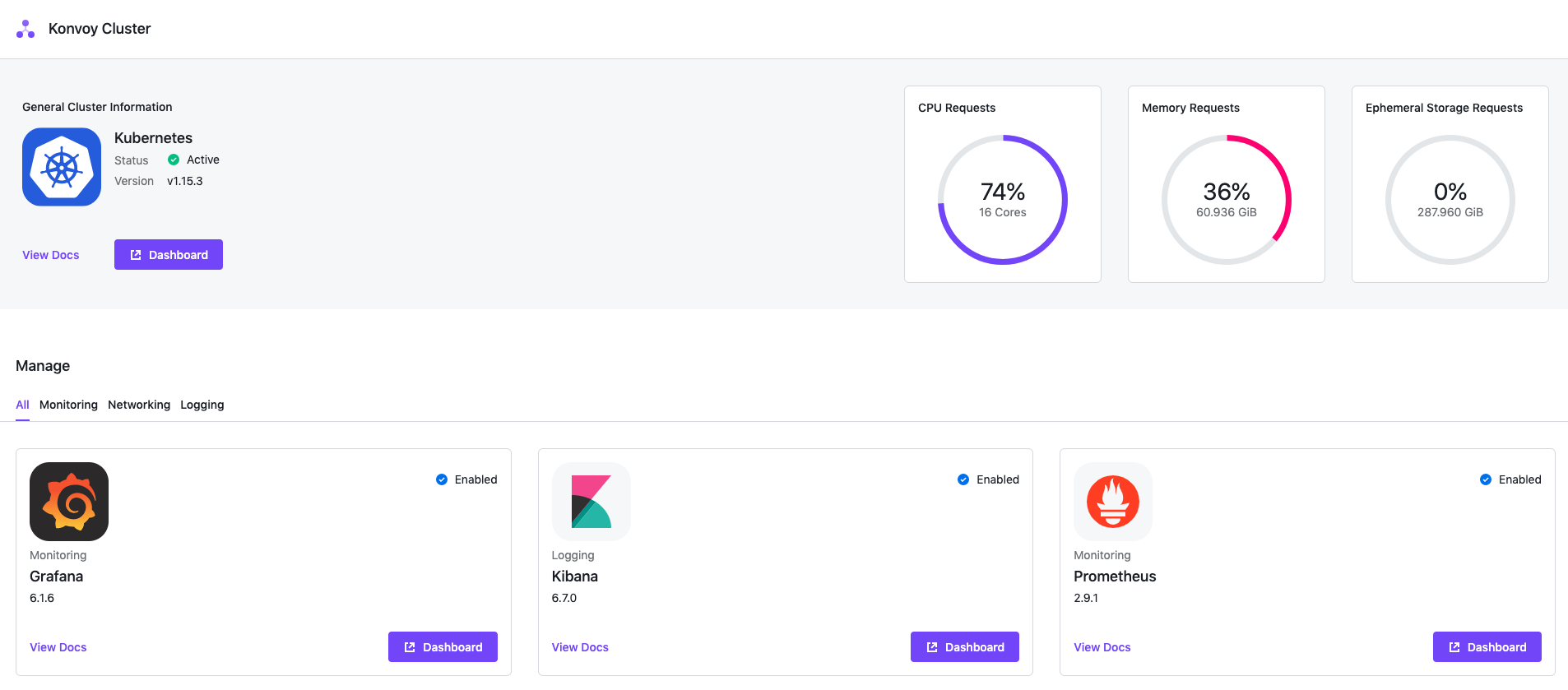

Operations Portal
Network: CoreDNS, Calico, MetalLB, Traefik
Security: Identity Management, SSO, TLS
Logging: Fluentbit, Elasticsearch, Kibana
Monitoring and Metrics: Prometheus, Grafana
Back up and restore: Velero

Operations Portal

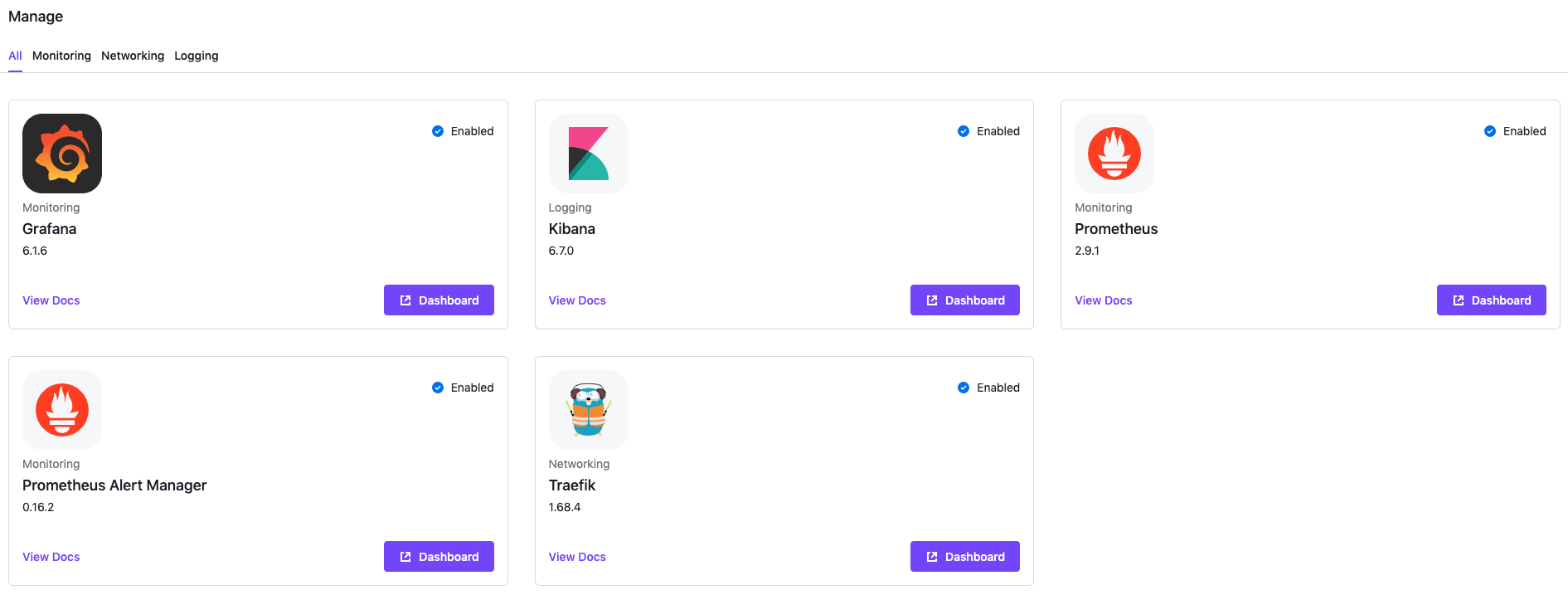

Operation Portal Components

Why Traefik?

Why, Mr Anderson?

The Premise of Microservices…

…and What Happens

Where’s My Service?

Tools of the Trade

What If I Told You?

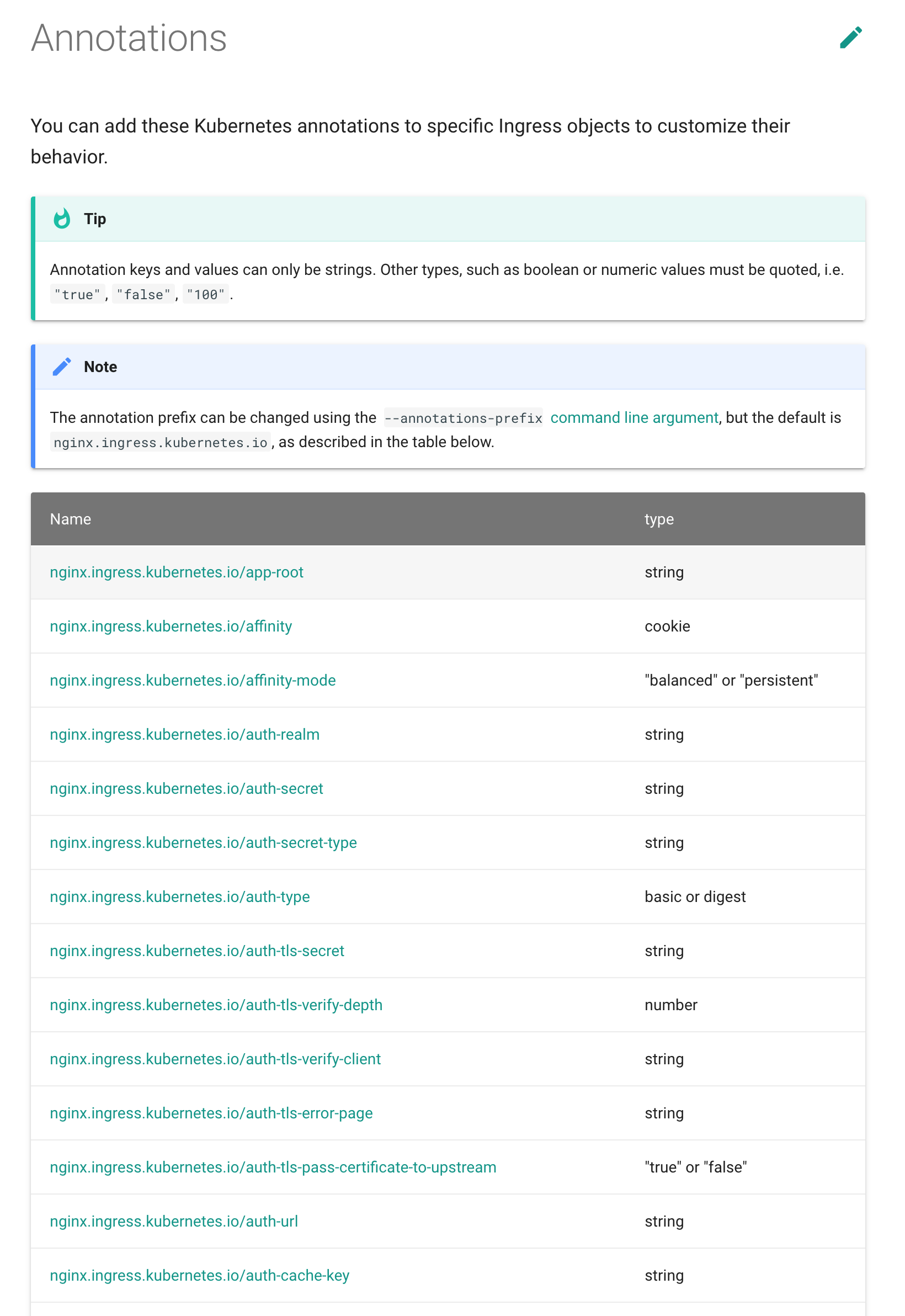

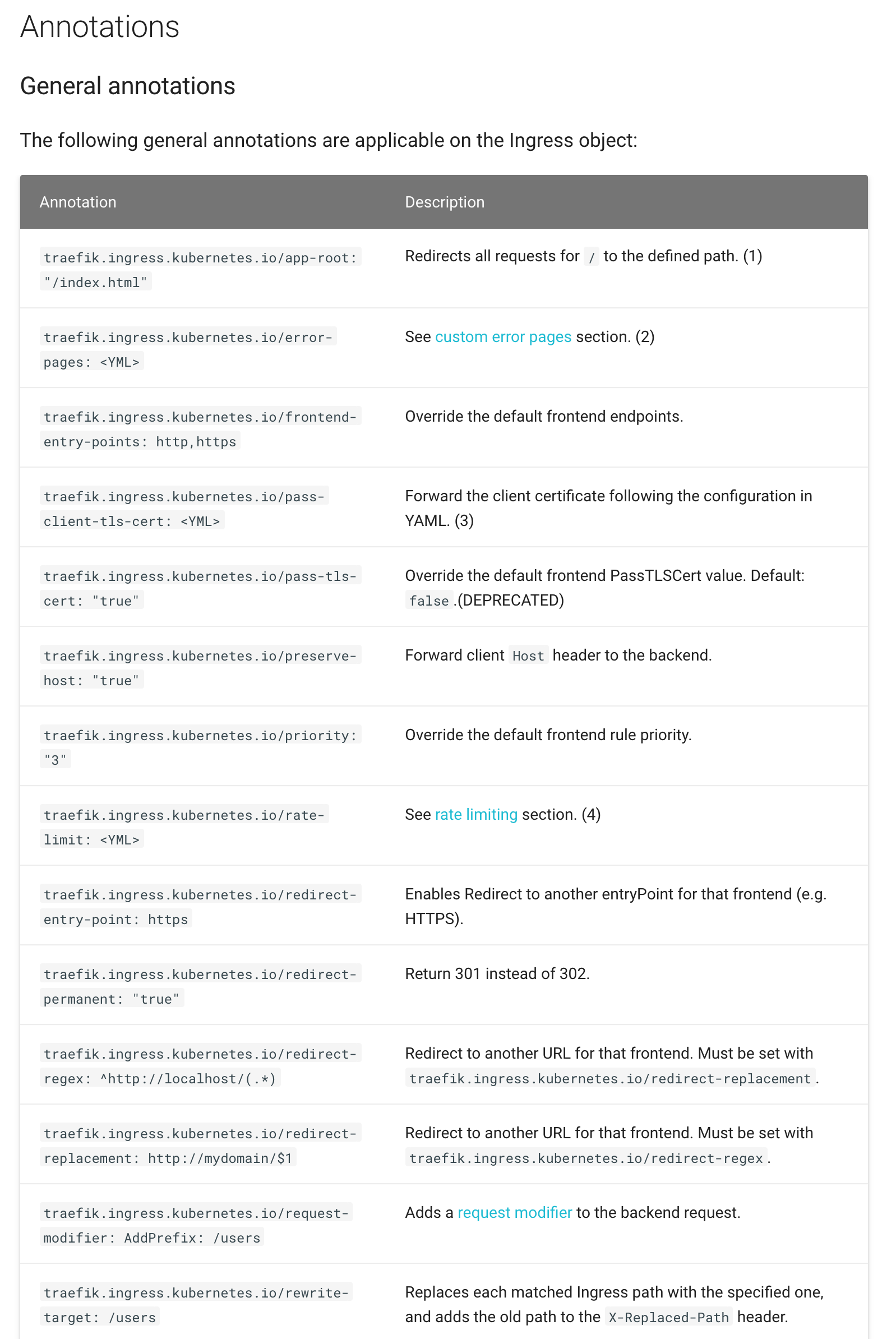

That You Don’t Have to Write This Configuration File…?

Here Comes Traefik!

Traefik Project

https://github.com/containous/traefik
MIT License
Written in Go
25,000+ ⭐ 1B+ ⬇️ 400+ 👷
Created in 2015, 4Y 🎂
Current stable branch: v2.0

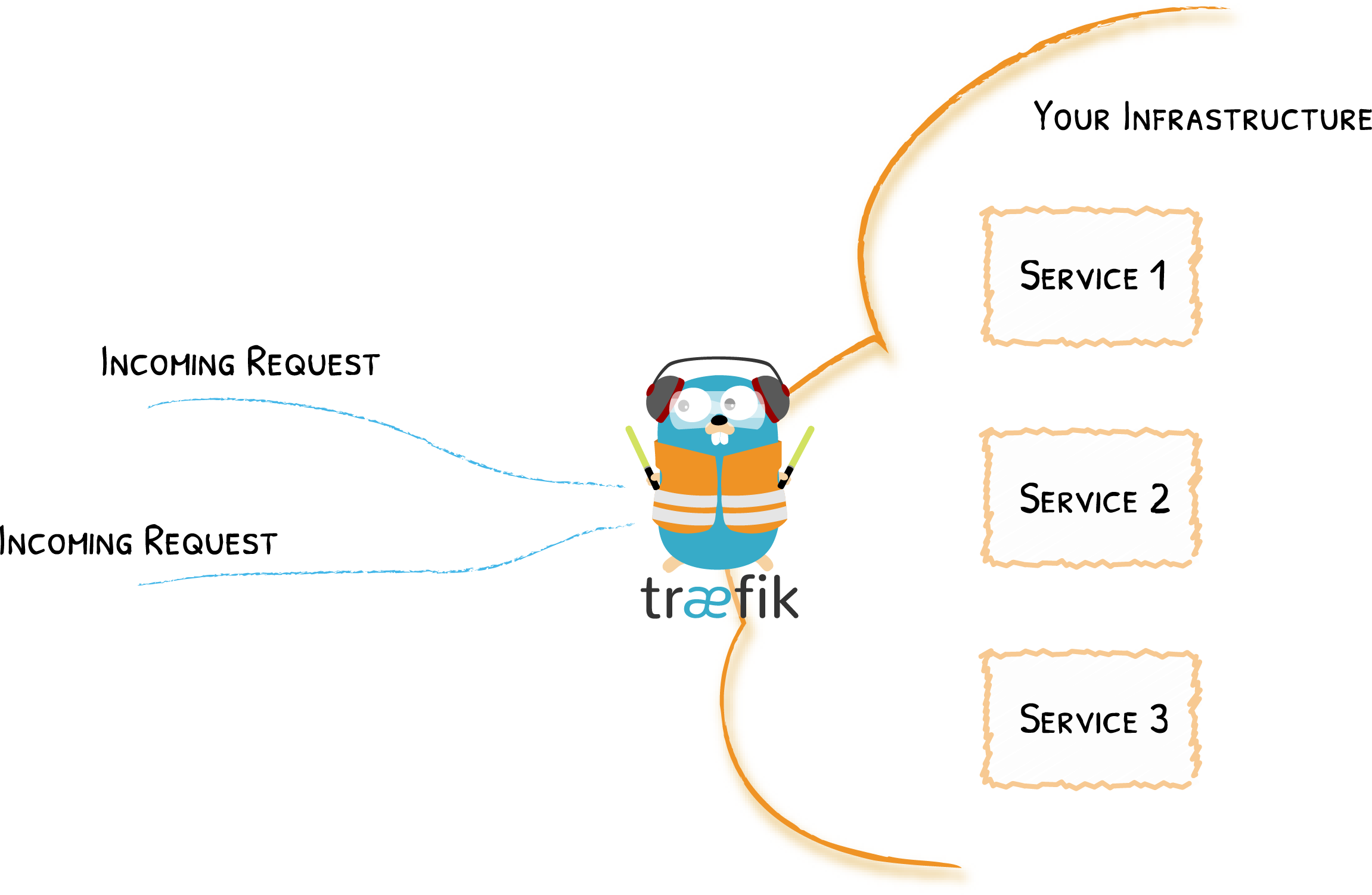

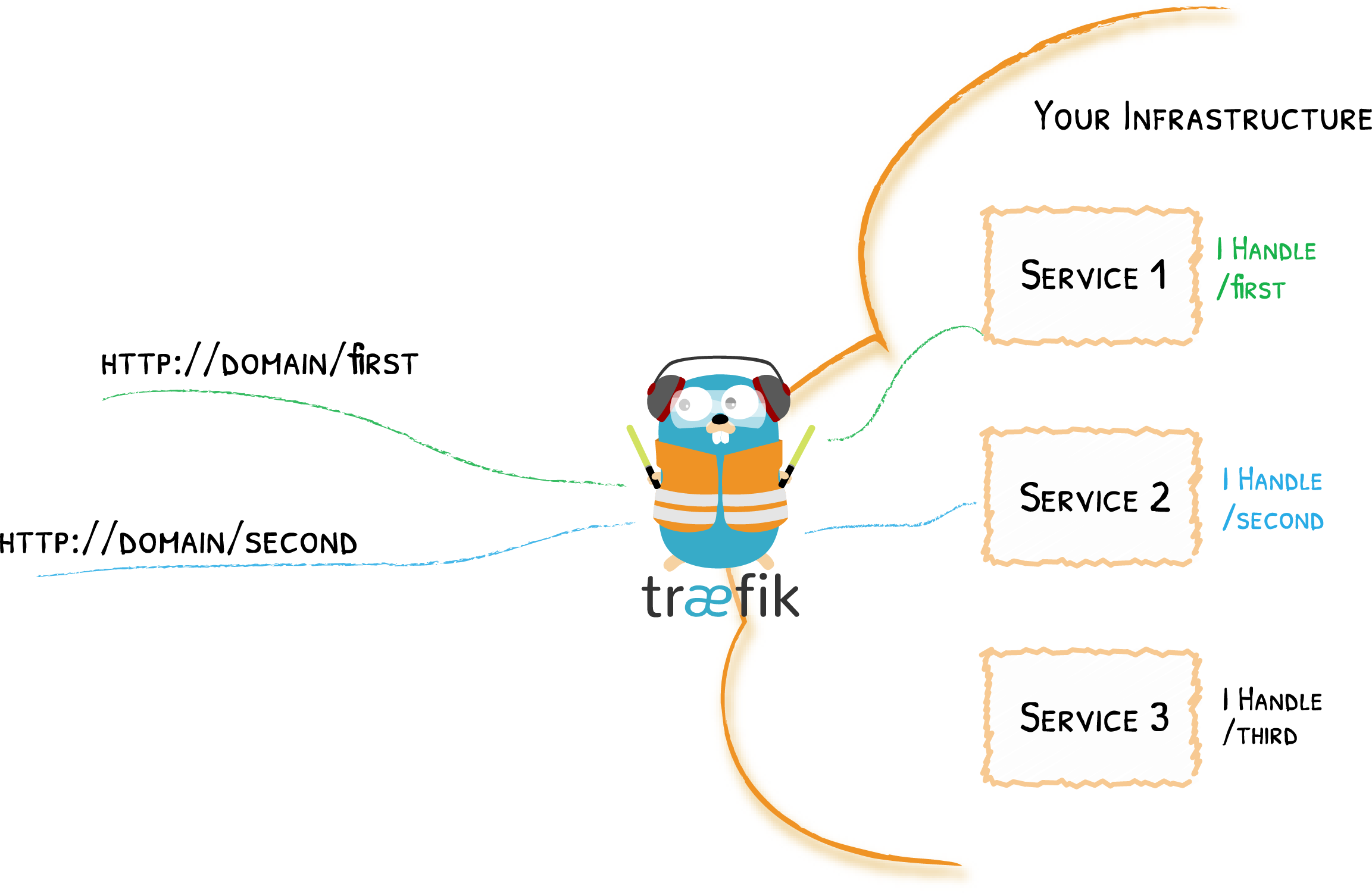

Traefik is an Edge Proxy

It Dynamically Discovers Services

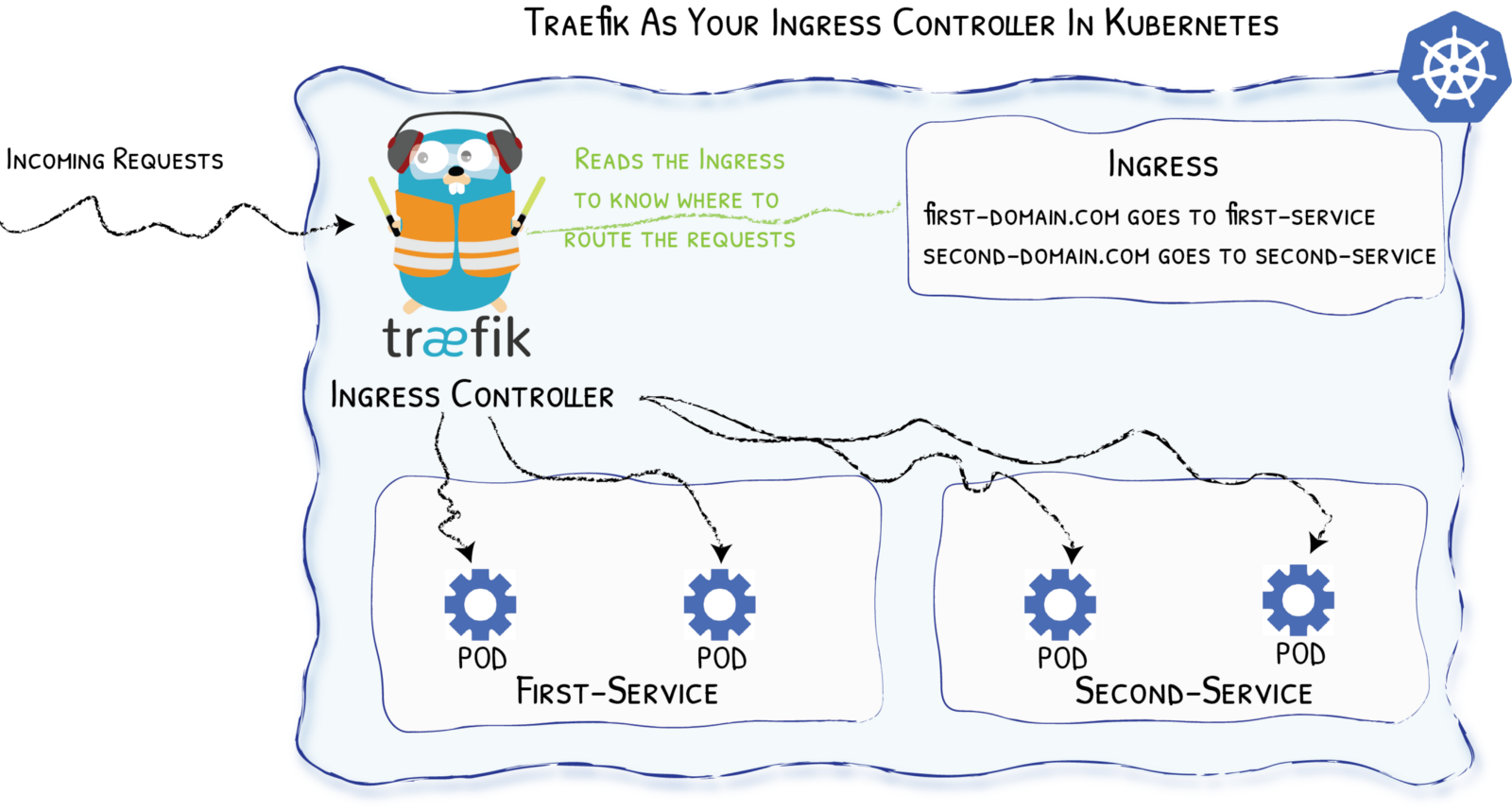

Traefik With ⎈

Diagram from https://medium.com/@geraldcroes

Demo Time!

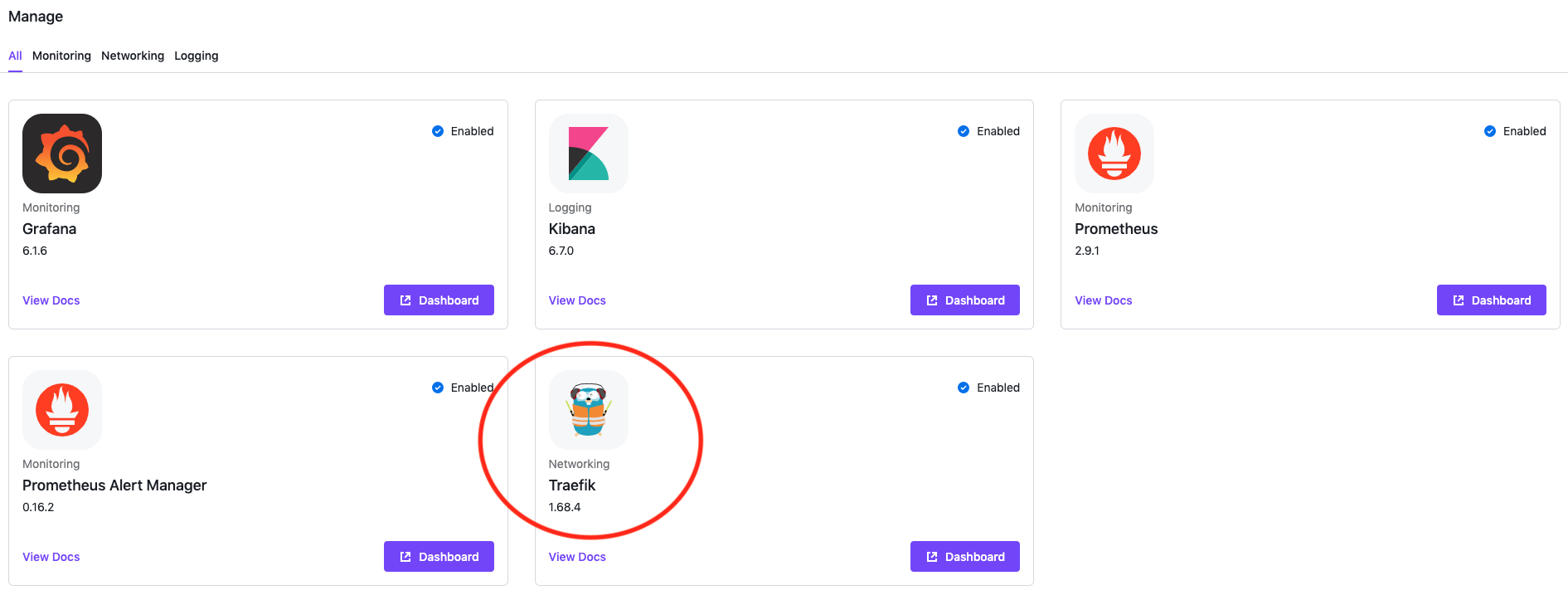

Konvoy and Traefik v1

Traefik v2

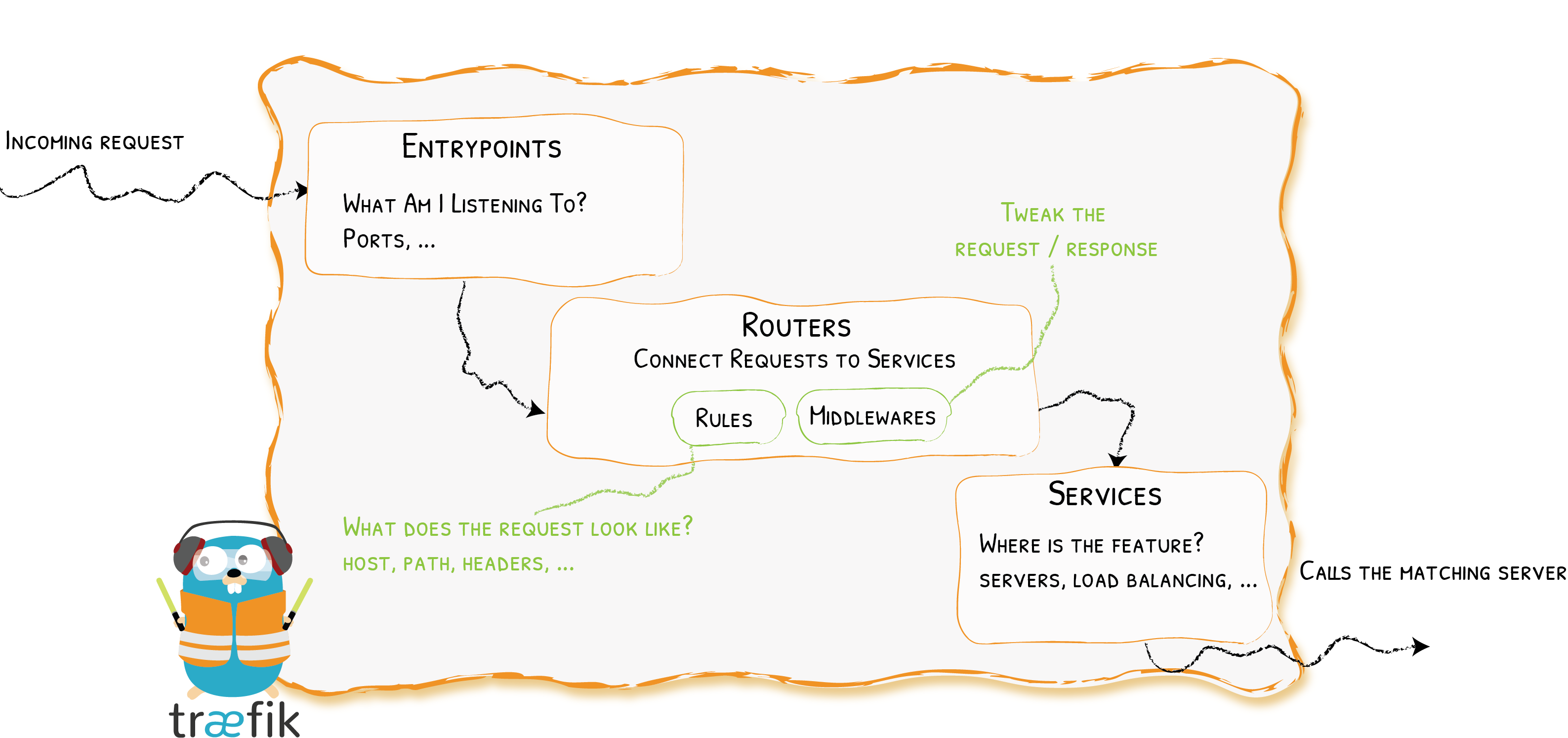

Architecture at a Glance

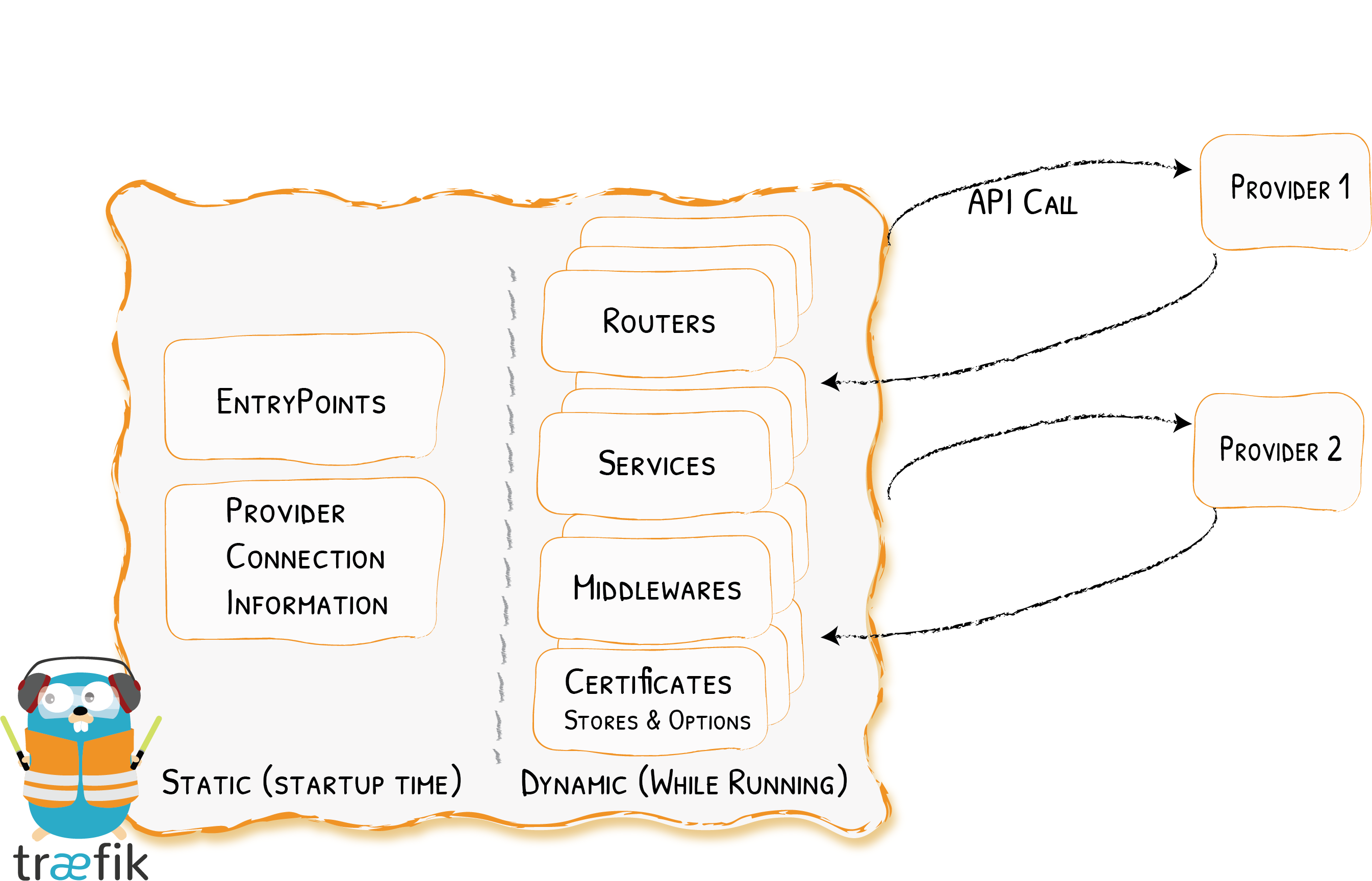

Static & Dynamic Configuration

Remember Traefik in ⎈?

Diagram from https://medium.com/@geraldcroes

But…

⎈ CRD - Custom Resources Definition

# File "webapp.yaml"
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: simpleingressroute
spec:
  entryPoints:
    - web
  routes:
  - match: Host(`localhost`) && PathPrefix(`/whoami`)
    kind: Rule
    services:
    - name: webapp
      port: 80

$ kubectl apply -f webapp.yaml
$ kubectl get ingressroute

⎈ & TCP (with CRD)

apiVersion: traefik.containo.us/v1alpha1
kind: IngressRouteTCP
metadata:
  name: ingressroutetcpmongo.crd
spec:
  entryPoints:
    - mongotcp
  routes:
  - match: HostSNI(`mongo-prod`)
    services:
    - name: mongo-prod
      port: 27017

Demo Time (2)!

Traefik v2 in Konvoy

East / West Traefik

What about routing traffic from service to services?

Say Hello to Maesh

What is Maesh?

Maesh is a lightweight, easy to configure, and non-invasive service mesh that allows visibility and management of the traffic flows inside any Kubernetes cluster.

Maesh Architecture

More on Maesh

Maesh Website

Show Me The Code!

Install Maesh (Helm Chart):

helm repo add maesh https://containous.github.io/maesh/charts
helm repo update
helm install --name=maesh --namespace=maesh maesh/maesh --values=./maesh/values.yaml

Deploy Applications:

kubectl apply -f apps/0-namespace.yaml
kubectl apply -f apps/1-svc-accounts.yaml
kubectl apply -f apps/2-apps-client.yaml
kubectl apply -f apps/3-apps-servers.yaml
kubectl apply -f apps/4-ingressroutes.yaml

Deploy SMI Objects to allow traffic in the mesh:

kubectl apply -f apps/5-smi-http-route-groups.yaml
kubectl apply -f apps/6-smi-traffic-targets.yaml

A Closer Look to SMI Objects

apiVersion: specs.smi-spec.io/v1alpha1
kind: HTTPRouteGroup
metadata:
  name: app-routes
  namespace: apps
matches:
- name: all
  pathRegex: "/"
  methods: ["*"]
---
apiVersion: access.smi-spec.io/v1alpha1
kind: TrafficTarget
metadata:
  name: client-apps
  namespace: apps
destination:
  kind: ServiceAccount
  name: apps-server
  namespace: apps
specs:
- kind: HTTPRouteGroup
  name: app-routes
  matches:
  - all
sources:
- kind: ServiceAccount
  name: apps-client
  namespace: apps

Demo Time (3)!

Maesh in Konvoy

That’s All Folks!

Thank you!
