Why Traefik?

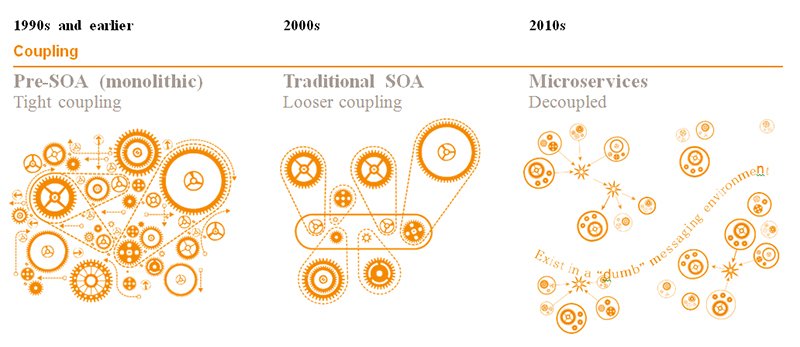

Evolution of Software Design

The Premise of Microservices…​

…​and What Happens

Where is the Service?

Tools of the Trade

What If I Told You?

Here Comes Traefik!

Traefik Project

Traefik Core Concepts

Remember the Diagram?

Let’s Simplify

Providers

Entrypoints

Backends

Frontends

In Practice

Show Me the Configuration!

Keep it Simple

entrypoint:
    image: traefik:v1.7
    command:
      - "--docker"
      - "--docker.domain=mycompany.org"
      - "--acme.email=ssl-admin@mycompany.org"
      - "--acme.httpChallenge.entryPoint=http"
      # Or you could use a TOML file with "--configFile=/etc/traefik/traefik.toml
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock

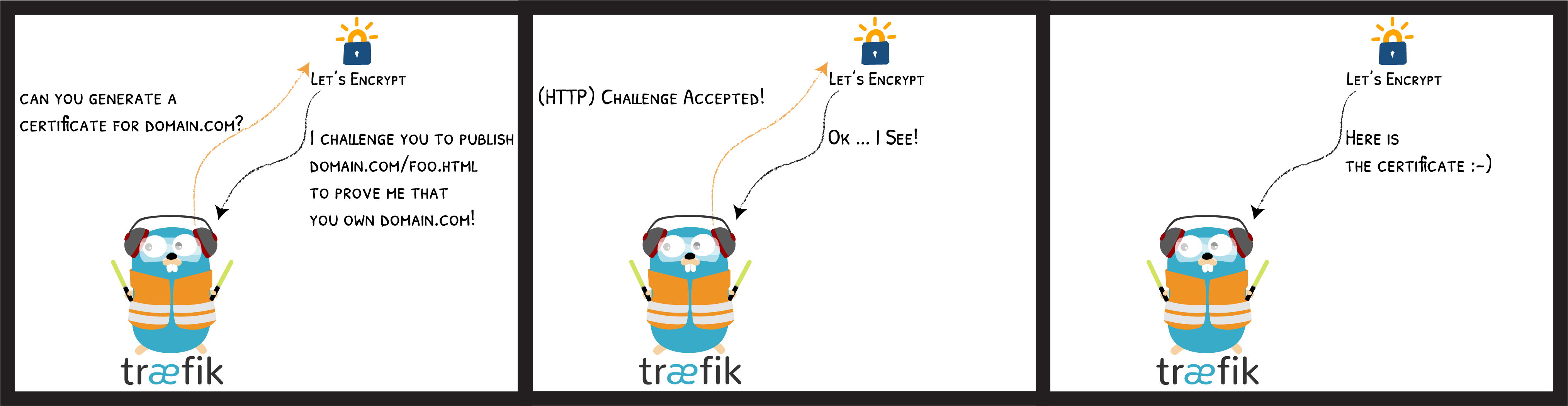

HTTPS for Everyone with Let’s Encrypt

Demo

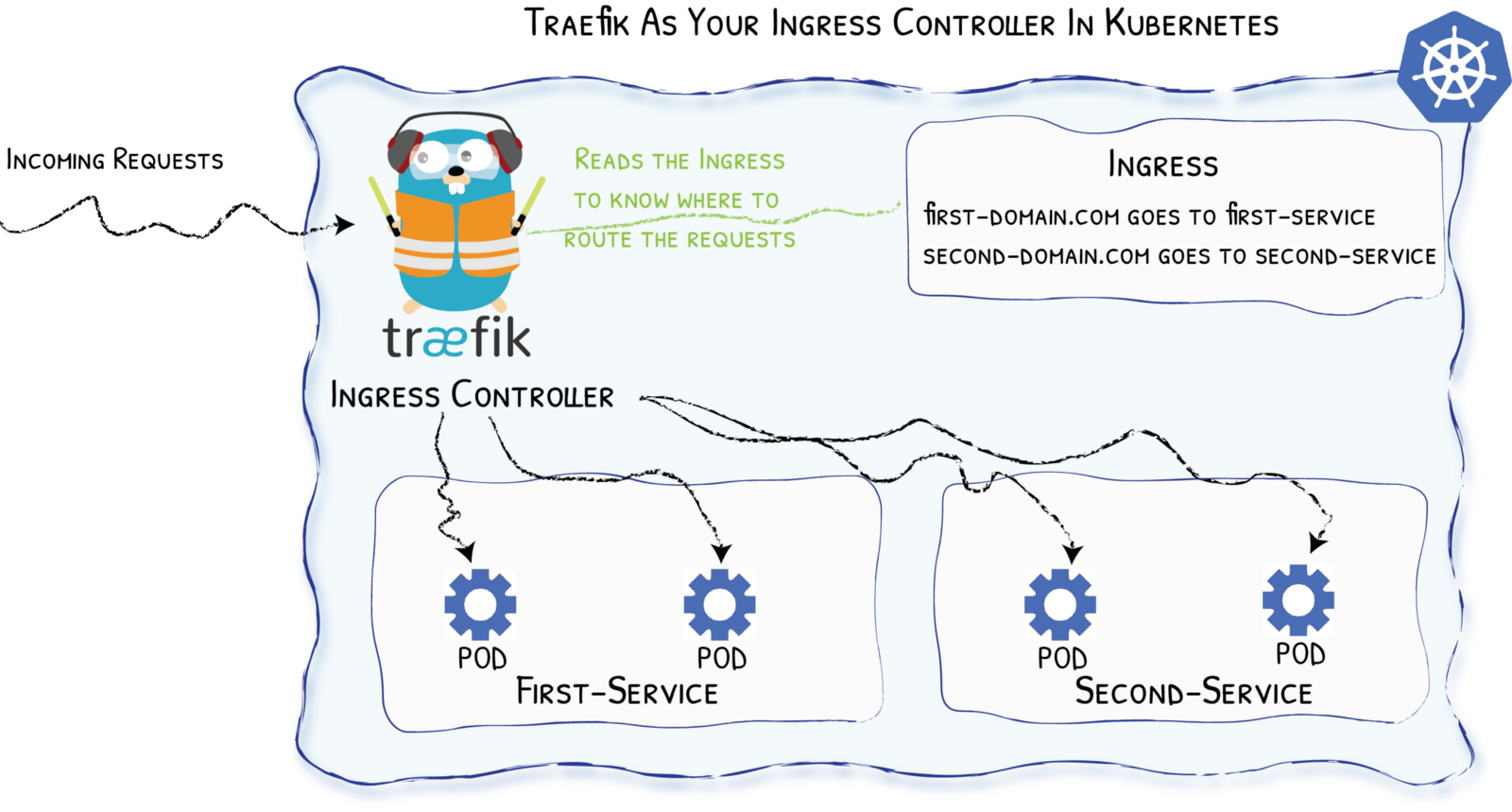

Traefik with ⎈

Did you say YAML?

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    # kubernetes.io/ingress.class: 'nginx'
    kubernetes.io/ingress.class: 'traefik'
spec:
  rules:
  - host: mycompany.org
    http:
      paths:
      - path: "/whoami"
        backend:
          serviceName: whoami
          servicePort: 80

We Missed Talking About …​

The Herd

Traefik comes in Herd

As Simple As Traefik

# Cluster Installation
traefikeectl install \
    --licensekey="SuperSecretLicence" \
    --dashboard \
    --kubernetes # Or --swarm

# Routing Configuration, same as Traefik's
traefikeectl deploy \
    --acme.email=ssl-admin@mycompany.org
    --acme.tlsChallenge
    ...

Free Trial

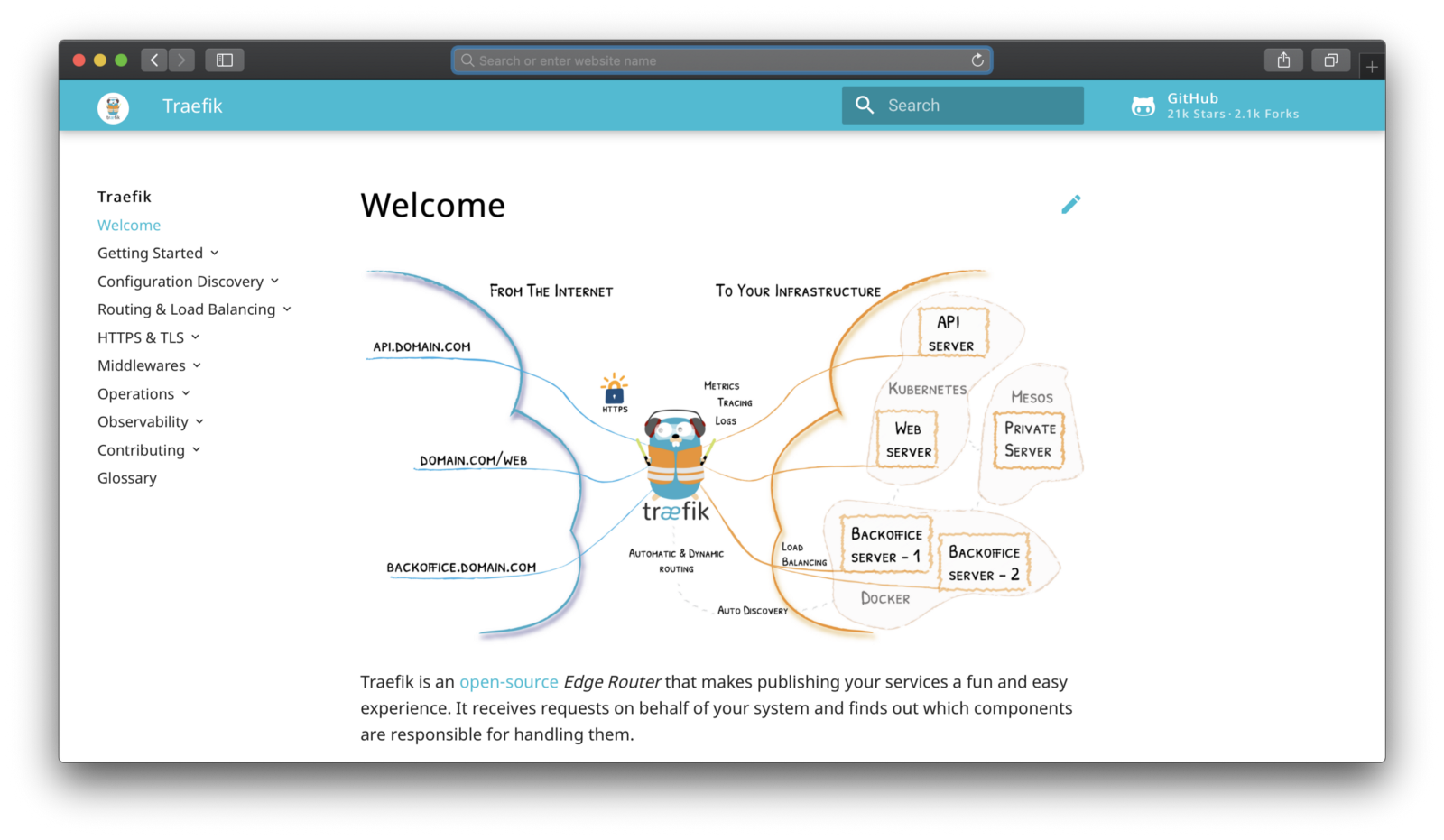

Revamped Documentation

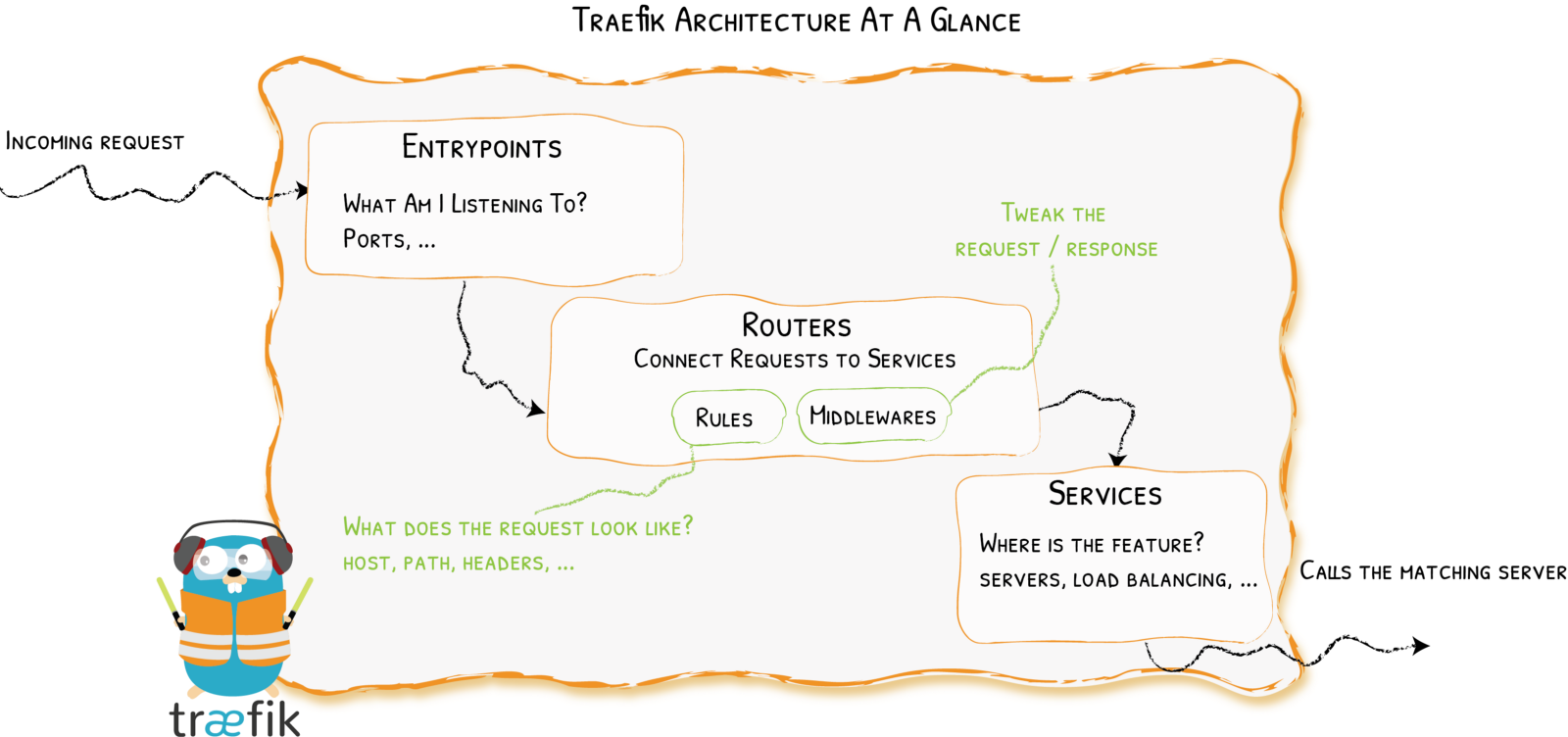

Clarified Concepts

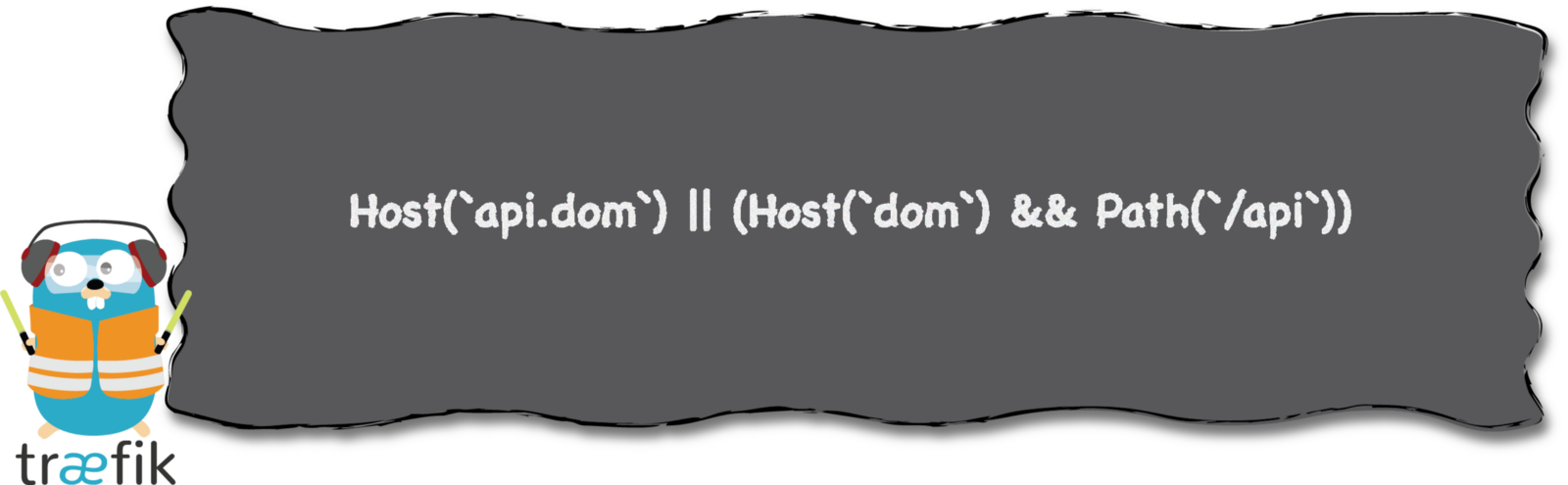

Expressive Routing Rule Syntax

# Send both requests to backend service:
#   https://api.mycompany.com/v2
#   https://api-v2.mycompany.com

rule=(Host('api.mycompany.com') && PathPrefix('/v2')) || Host('api-v2.mycompany.com')

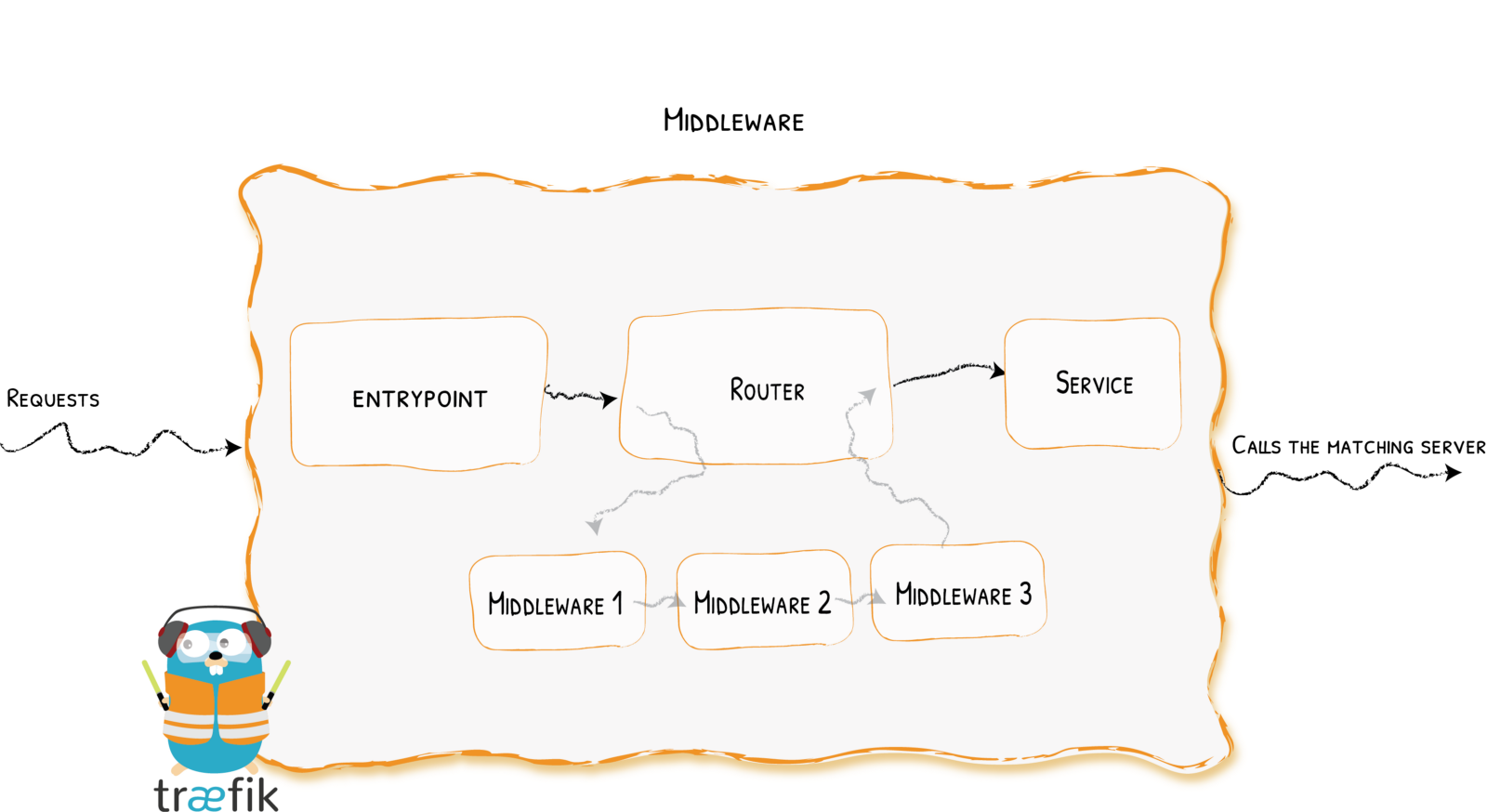

Middlewares

Quick Glance

[entrypoints]
    [entrypoints.web-secure]
      address = ":443"

[http]
   [http.routers.to-service-1]
      rule = "Host(`demo.containous.cloud`)"
      service = "service-1"
      [http.routers.to-service-1.tls] # terminates the tls connection at HTTP

[tcp]
   [tcp.routers.to-service-2]
      rule = "HostSNI(`demo.containous.cloud`)"
      service = "service-2"
      [tcp.routers.to-service-2.tls] # terminates the tls connection at TCP

[tcp.routers.to-service-3]
      rule = "HostSNI(`demo.containous.cloud`)"
      service = "service-3"
      [tcp.routers.to-service-3.tls]
         passthrough = true # sends encrypted data "as is" to service-3

And so Much More…​
